BM48A-AS 1000 nits Android Bar Signage Display

SKU: BM48A-AS
Signage Size
32" to 50"

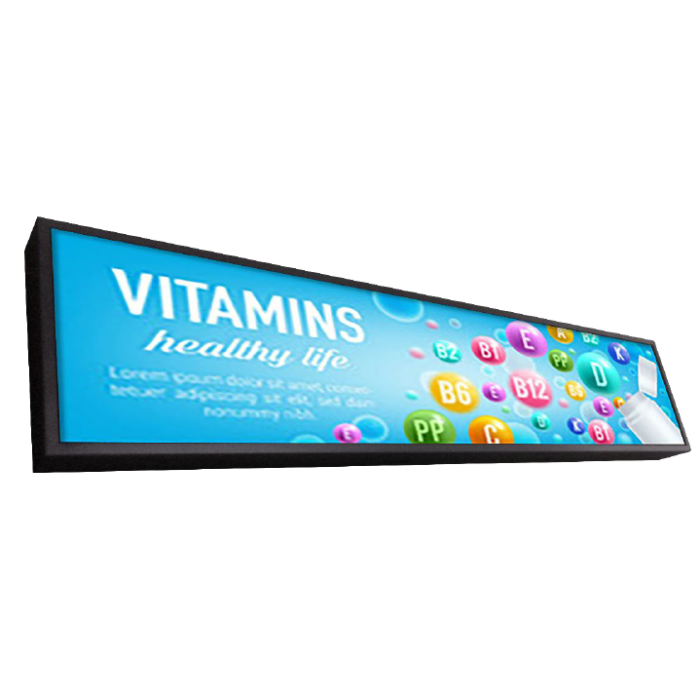

48” 1000nits Android Bar Signage Display

Datasheet

Description

•ADSDS Panel Technology

•3840 ×720 Resolution

•1000nits Brightness

•Built-In Speaker

•Android SoC

•External Input

•Slim Design

•Full Metal Shell

Download

Data Sheet

More Information

Specifications

Display
Model BM48A-AS
LCD Tech ADS
Screen Size 48 inch
Resolution 3840×720
Brightness 1000 nits
Contrast Ratio 1000:1
Viewing Angle(H/V) 178°/178°
Display Colors 1.07B
Backlight Life 50,000Hrs


Internal Player
OS Android 7.1
CPU AmlogicT960X Quad Core
RAM DDR32GB
ROM 8GB
Network LAN ×1 / Wi-Fi
Input HDMI×1 / Audio×1
Output -
External Control -
USB 1
Built-In Speaker 2 ×5W (8Ω)


Power
Power supply AC100-240V@50/60HZ
Power consumption ≤ 168 W


Environment
Operation temperature 0℃~40℃
Operation humidity 10%~90% RH
