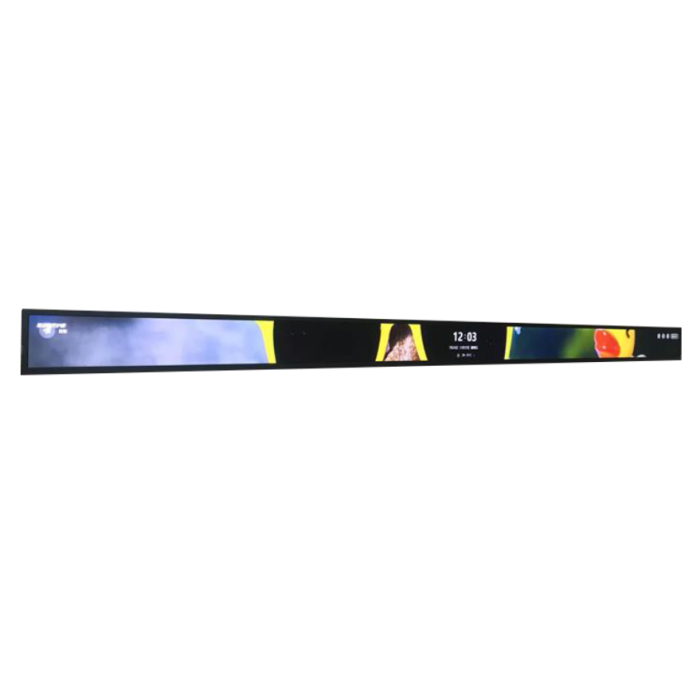

BM47A-AS 500 nits Android Signage Display
BM47A-AS 500 nits Android Signage Display
-
Signage Size
-
32" to 50"
47.1” 500nits Android Bar Signage Display
Description
•ADSDS Panel Technology
•1920 ×158 Resolution
•500nits Brightness
•Android SoC
•Suitable for shelf installation
•Industrial Slim Design
•Full Metal Shell
More Information
|
Specifications |
Display
Model BM47A-AS
LCD Tech. ADS
Screen Size 47.1 inch
Resolution 3840×160
Brightness 500 nits
Contrast Ratio 1000:1
Viewing Angle(H/V) 178°/178°
Display Colors 16.7 M
Backlight Life 50,000Hrs(Min.)
Interface
O/S Android 5.1.1
CPU S700,Quad-core A53 SMP4,28nm
RAM DDR32GB
ROM 8GB
Network LAN×1 (miniRJ45)/ Wi-Fi / BT4.2
Input Mini USB×1 (OTG)/ HDMI ×1
Power
Power supply DC 12V,5A (USB TypeC, Adaptor)
Power consumption 35W
Environment
Operation temperature 0℃~50℃
Storage temperature -20℃~60℃
Physical
Frame SECC
Back cover SECC
Body Dimension 1211.2(L)×67.5(W)×22.8(D) mm
BodyWeight TBD
|
