BM37A-AS 700 nits Android Bar Signage Display

End of Life
BOE
SKU: BM37A-AS
Signage Size
32" to 50"

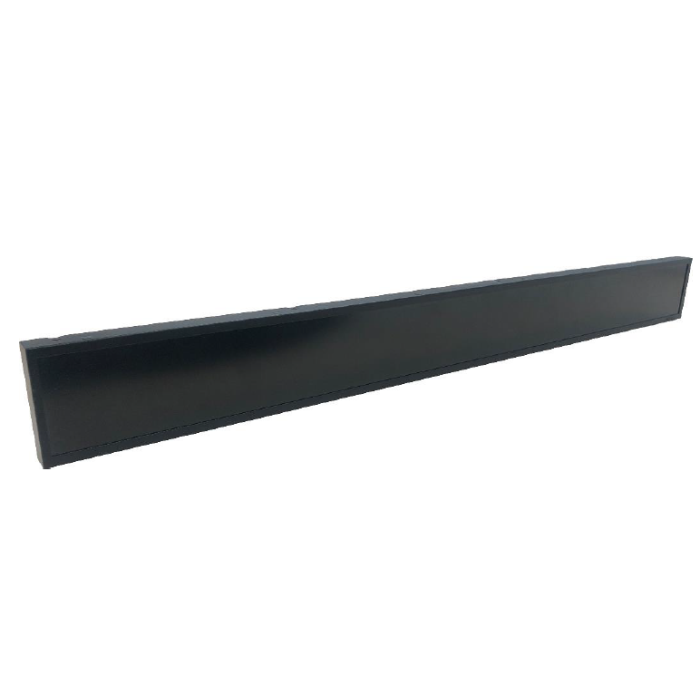

36.6” 700nits Android Bar Signage Display

Datasheet

Description

•ADSDS Panel Technology

•1920 ×290 Resolution

•700nits Brightness

•Built-In Speaker

•Android SoC

•External Input

•Slim Design

•Full Metal Shell

Download

Data Sheet

More Information

Brand BOE
Specifications

Display
Model BM37A-AS
LCD Tech. ADS
Screen Size 36.6 inch
Resolution 1920 ×290
Brightness 700 nits
Contrast Ratio 1200:1
Viewing Angle(H/V) 178°/178°
Display Colors 16.7 M
Backlight Life 50,000 Hrs


Internal Player
OS Android 8.1
CPU Rockchip PX30 Quad Core, ARM Cortex-A35
RAM DDR3 1GB
ROM 8GB
Network LAN ×1 / Wi-Fi
Input -
Output -
External Control -
USB 2
Built-In Speaker 2 ×5W (8Ω)


Power
Power supply AC100-240V@50/60HZ
Power consumption ≤ 63 W


Environment
Operation temperature 0℃~40℃
Operation humidity 10%~80% RH
