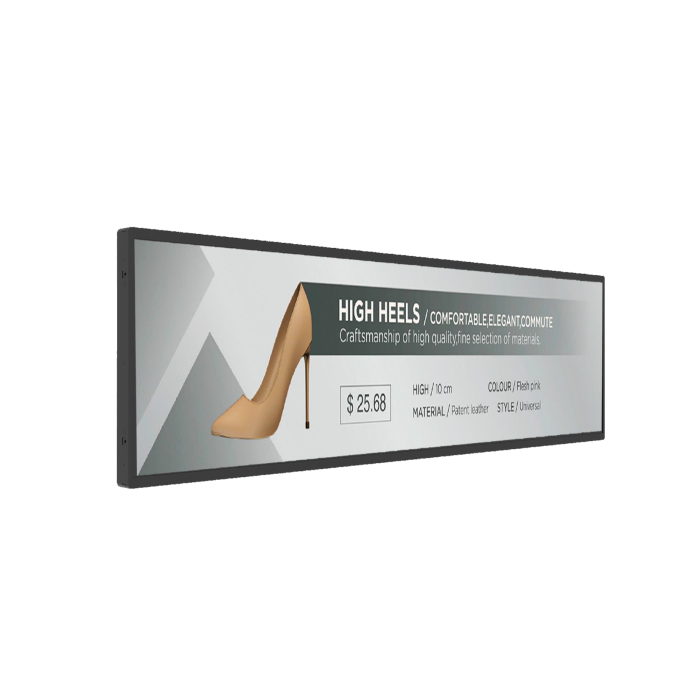

BM370A-A01 37" 700nit Android Bar Display

SKU: BM370A-A01
Signage Size
37"

Android 7.1, 1920 × 540 Resolution, Full Metal Shell

Key Features:

  • ADSDS Panel Technology
  • 1920 × 540 Resolution
  • 700nits Brightness
  • Android 7.1
  • Quad Core SoC
  • Slim Design
  • Full Metal Shell

Description

Key Features:

  • ADSDS Panel Technology
  • 1920 × 540 Resolution
  • 700nits Brightness
  • Android 7.1
  • Quad Core SoC
  • Slim Design
  • Full Metal Shell

Download

More Information

Brand BOE
Specifications

Display

Model BM370A-M02
LCD Tech. ADS
Screen Size 37 inch
Resolution 1920 × 540
Brightness 700nits
Contrast Ratio 1200:1
Viewing Angle(H/V) 178°/178°
Display Colors 16.7 M

Drive Board

Input HDMI × 2 / DP × 2
Output DP × 1 / HP × 1
External Control RS232 & IR × 1 (IN/ Out)
Networks -
Others USB 2.0 × 1 (F/W Update Only)

Power

Power supply AC 100V~240V@50/60Hz
Power consumption (Typ.) ≤38 W
Power consumption (Standby) ≤0.5 W
Power consumption (Off) ≤0.5 W

Environment

Operation temperature 0℃~40℃
Operation humidity 20%~80% RH

Physical

Bezel Width 5.59mm (L/R) / 11.93mm (T/B)
Body Dimension 914.90(W) × 280.90 (H) × 48.8(D) mm
Set Weight 7.84Kg
Package Dimension (4 sets inside) 980 (W) × 370 (H) × 350 (D) mm
Package Weight (4 sets inside) 34kg
