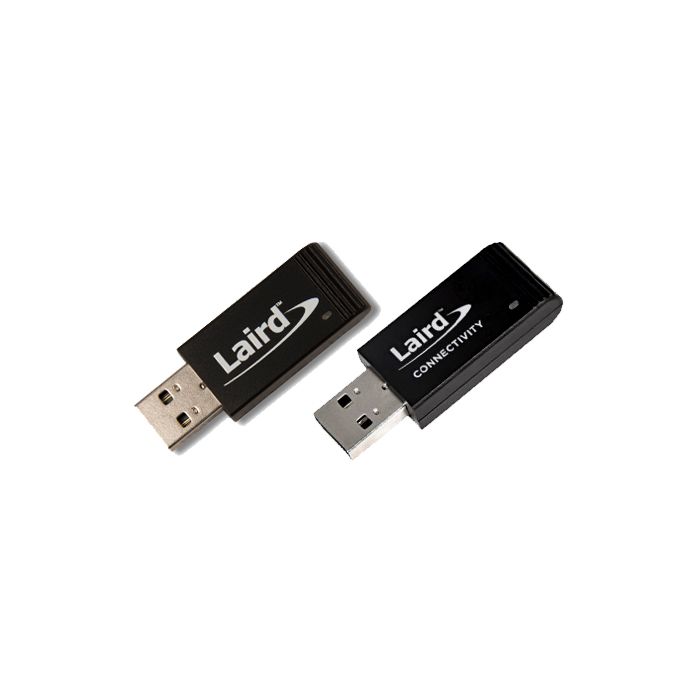

BL654-USB with smartBASIC

SKU: BL654-USB

Bluetooth 5 & Thread (802.15.4) - Bluetooth Low Energy (BLE) plus NFC, featuring Nordic nRF52840

Datasheet

Description

The BL654 series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and 802.15.4 (Thread) implementation. Complete regulatory certifications enable faster time to market and reduced development risk completes Laird’s simplification of your next Bluetooth design!

Download

Product Brief

More Information

Brand Ezurio (Laird Technologies)
Specifications

Bluetooth® v5 – Single-Mode (Peripheral and Central Roles)
Thread® 802.15.4 stack provided via Nordic SDK
Frequency 2.402 - 2.480 GHz
Transmit Power + 8 dBm (maximum). Configurable down to -40 dBm
Receive Sensitivity -95 dBm (typical @ BLE 1 Mpbs)
-92 dBm (typical @ BLE 2 Mbps
-103 dBm (typical @ BLE 125 kbps)
Link Budget 103 dB (@ BLE I Mbps), 111 db (@ BLE 125kpbs)
Antenna Options PCB Trace antenna or IPEX MHF4 RF Connector
Raw Data Rates (Air) 1 Mbps, 2 Mbps, 125kbps
