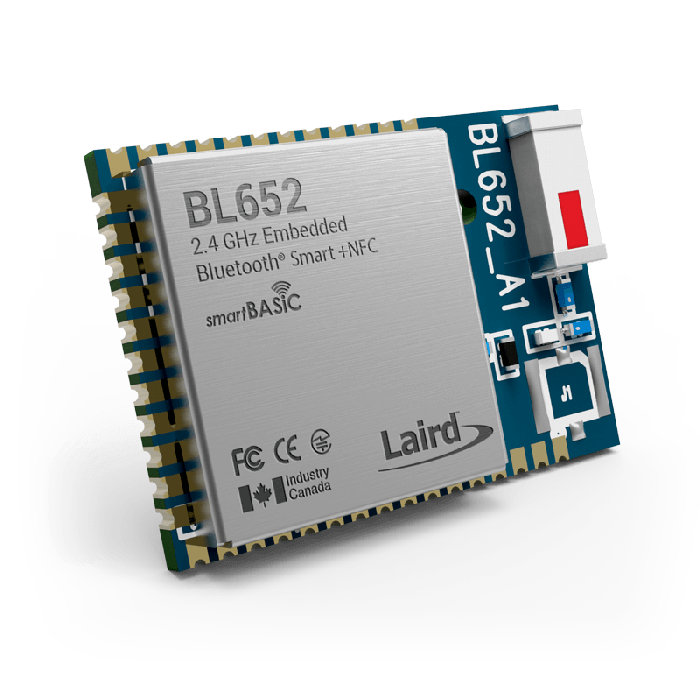

BL652 Series - Bluetooth v5 + NFC

In stock

Bluetooth 5 Low Energy + NFC Module

Enquire Now
Enquire about this product:

Get started in minutes with the DVK-BL652 Quick Start Guide!

Laird’s BL652 contains the latest generation silicon with Bluetooth v5 capabilities and groundbreaking ultra-low power performance. Building on the expertise of the BL600 Series, the BL652’s smaller form factor, class-leading Nordic nRF52 silicon, optimized low power schemes and smartBASIC programming language provide a secure, stable, hostless Bluetooth environment. The BL652 introduces Bluetooth v5 (Firmware v28.7.3.0 or later) and NFC, bringing industrial security and feature expansion to Laird’s proven Bluetooth Low Energy modules. Let Laird’s innovative BL652 series and decades of expertise in Bluetooth module design speed your product to market.

Download the NEW UwTerminalX as well as the two companion applications: MultiDeviceLoader and TermNotify. See also Laird's BL652 Sample Applications library for a collection of working example

BLE Connections - 8
BT Class - 2
Central Role - Yes
Certifications - FCC, IC, CE, MIC, SIG, KC
Compliance - RoHS, REACH
Development Kits Available - DVK-BL652-SA and DVK-BL652-SC
Development Tools - Utilities include UWTerminalX, Android and iOS applications with free source code, UART firmware upgrade
Dimensions (H x L x W) - 2.1 mm x 14 mm x 10 mm
Dual Mode - No
GPIO - Yes - 31 configurable lines
Link Budget - 100 dB (conducted)
Logical Interfaces - GPIO (31 max), I2C (1) SPI (1), ADC (8), PWM and FREQ (up to 12), NFC (1)
NFC - Yes
Operating Temp (°C) - -40 °C - 85 °C
Peripheral Role - Yes
Processor On Board - Cortex M4F
Programming Options - smartBASIC or Nordic SDK
Receive Sensitivity - -96dBm (1mpbs)
Stack On Board - Yes
Transmit Power - 4 dBm (max). Configurable down to -40 dBm
Wi-Fi Coexistence - No
