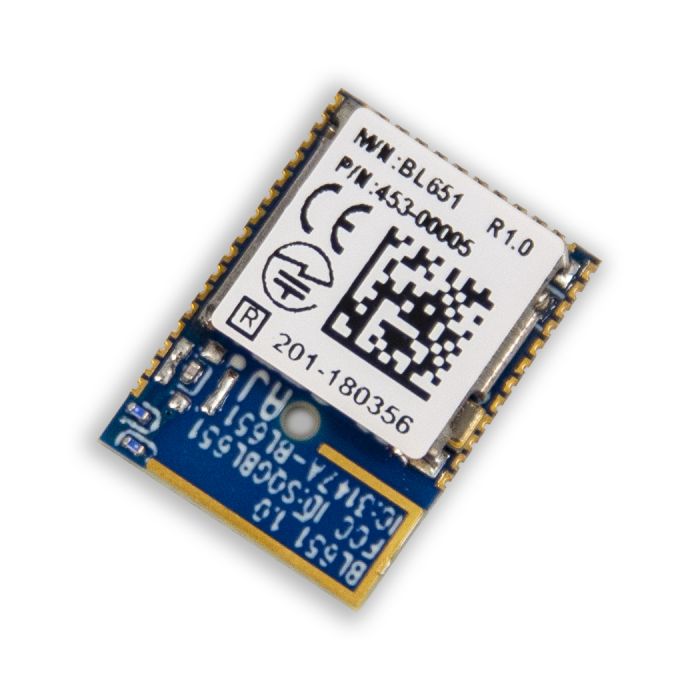

BL651 Series - BT5.0 Low Energy
In stock
SKU:
BL651
Brand: Laird Connectivity
Bluetooth® 5 Low Energy Modules featuring Nordic nRF52810
Enquire Now
Enquire about this product
Antenna Options - Integrated (453-00005) or External via IPEX MHF4 (453-00006)
BLE Connections - 3
Bluetooth Version - 5.0
BT Class - 2
Certifications - FCC, IC, CE, MIC, RCM
Chipset - Nordic nRF52810
Compliance - RoHS, REACH
Dimensions (H x L x W) - 2.1 mm x 14 mm x 10 mm
Dual Mode - No
GPIO - 32 configurable lines
Link Budget -100dB (conducted)
Logical Interfaces - UART, GPIO, I2C, SPI, ADC, PWM
NFC - No
Operating Temp (°C) - -40 °C - 85 °C
Peripheral Role - Yes
Processor On Board - Cortex M4
Programming Options - Nordic SDK or Zephyr
Receive Sensitivity - -96dBm (1mpbs)
Stack On Board - Yes
Transmit Power - -4 dBM (max.) Configurable down to -40 dBm
Wi-Fi Coexistence - No
