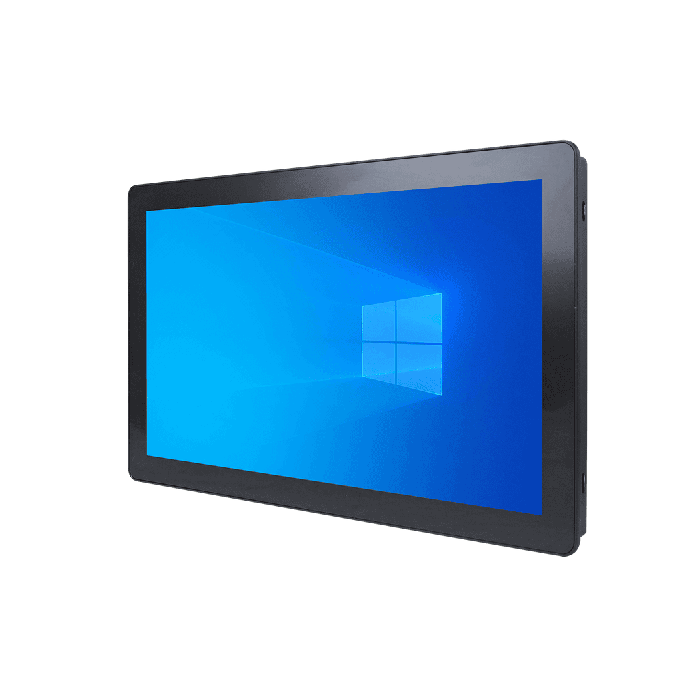

ARC-15W00 15.6" WXGA Rugged PCAP Multi-Touch Monitor

System Information

Other

OSD key at rear cover

Expansion

Option for Bi-Direction WIFI-6 interactive module for USB signal and image

Audio

Audio Interface

1x Line in

Speaker Output

2 x 5W

Certification

Certification Information

CE/ FCC Class A

External I/O

USB

USB type B connector for touch function

Panel

LCD Size

15.6", 16:9

Display Type

WXGA

Resolution

1366x768

Pixel Pitch

0.252mm (H) x 0.252mm (V)

Luminance

300 cd/m²

Contrast Ratio

500

Viewing Angle

80° (U), 80° (D), 80° (L), 80° (R)

Response Time

8 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch supports up to 10 points

Touch Light Transmission

89%

I/O

HDMI

1x HDMI 1.4a (HDCP 1.3)

VGA

1x 15 PIN D-SUB VGA connector

Display Port

1x Display Port 1.2 (HDCP 1.3)

Mechanical & Environmental

Operating Temp.

-10°C ~ 50°C (option for -10°C ~ 60°C)

Storage Temp.

-20°C ~ 60°C

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Weight

3.2 Kg

Vibration Test

1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

MIL-STD-810G, method 516.6, procedure I, functional shock=20G

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm; Panel mount with mounting kits

Dimension (W x L x D)

391.21 x 239.21 x 68 mm

Power Requirement

+12V DC in by DC Jack; Optional +9~36V DC in by phoenix connector

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Metal

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz; Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
