SKU: APPD 1700T

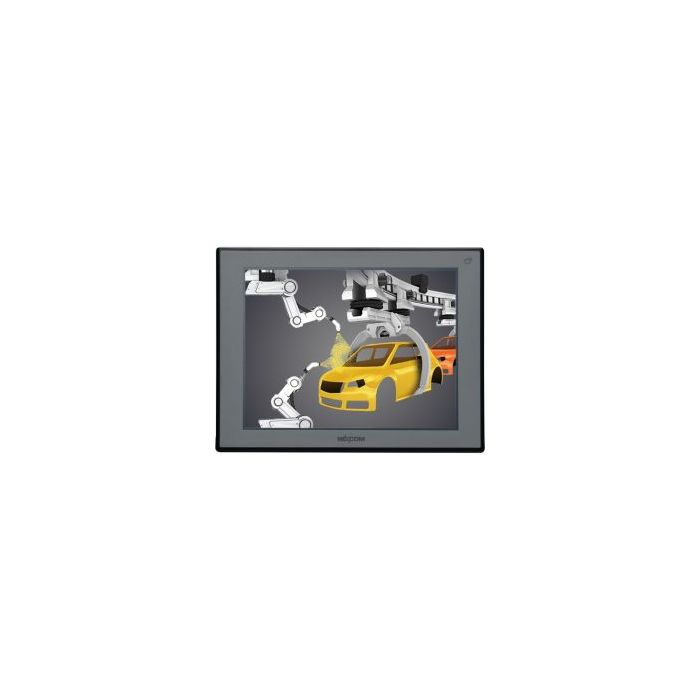

17" IP65 Industrial 4:3 SXGA LCD Flush Touch Monitor

Datasheet

Description

17" IP65 Industrial 4:3 SXGA LCD Flush Touch Monitor

· IP65 compliant plastic front bezel with flush panel by 5-wire touch screen

· Dual display input interface: analog VGA and DVI-D

· Shares identical appearance with APPC series

· Dual touch screen interface: RS232 and USB

· Ultra slim in depth

· OSD Multilanguage function

Product Data Sheet

Brand

Nexcom

Specifications

Panel	LCD size: 17", 4:3Resolution: SXGA 1280 x 1024Luminance: 350cd/m2Contrast ratio: 800LCD color: 16.7MViewing angle: 60 (U), 80 (D), 80 (L), 80 (R)Backlight: LED
Touch Screen	5-Wire resistive (flush panel type)Light transmission: 81%Interface: USB and RS232
Rear I/O	Touch interface port: RS232 (1 x DB9)/USB Type AVideo port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)DC power input connector: 3-Pin Phoenix terminal Blocks
OSD Function	OSD keypadMultilanguage OSD
Mechanical & Environment	Color: pantone black and black silver chassis boxIP protection: IP65 frontMounting: panel/wall/stand/VESA 100mm x 100mmPower input: 12V~24VDCPower adapter: optional AC to DC power adapter (+12V, 60W)Vibration: IEC 68 2-64 2Grms @ sine, 5~500Hz, 1hr/axis (Operating) 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)Shock: IEC 68 2-27 20G@wall mount, half sine, 11ms Operating temperature: -5°C to 50°C Storage temperature: -20°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 410.4 x 340.4 x 53.9mmWeight: 4.8 Kg
Certifications	CE approvalFCC Class B
