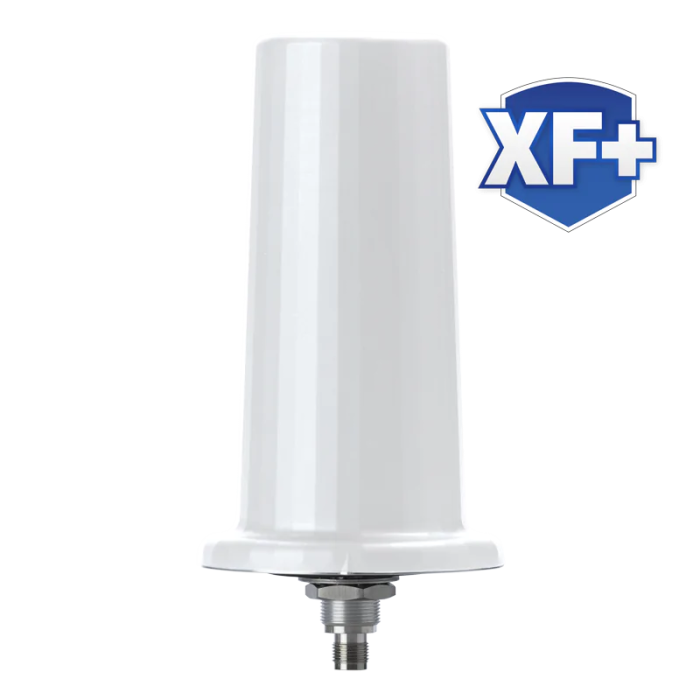

AJ979XF+ MAR Anti-Jam Multi-Constellation Full-Band Antenna
The AJ979XF+ MAR Anti-Jam antenna is designed to mitigate interference and jamming signals broadcast from near-ground-based transmitters.
Key Features:
- Great axial ratio (1.0 dB typ.)
- Low LNA noise (2.5 dB typ.)
- High-rejection XF+ Filtering
- High-gain LNA (40 dB typ.)
- Wide voltage input range (2.5 to 16 VDC)
- ESD circuit protection (15 kV)
- IP67 weather-proof housing
- RoHS and REACH compliant
- 20 dB attenuation at 0-15° Elevation
Description
Product Overview
The Calian AJ979XF+ MAR is a high-precision anti-jam full band GNSS antenna engineered for reliable positioning, navigation and timing in the most challenging RF environments. Designed for marine, transport and mission-critical deployments, it supports full band GNSS coverage across L1, L2, L5 and L6 frequencies, delivering enhanced accuracy and signal continuity. By combining low elevation signal suppression with advanced XF+ filtering, the antenna maintains stable performance even in the presence of strong interference from ground-based transmitters, satellite communications and nearby RF systems.
Key Features
Full Band GNSS Coverage
-
Supports GPS, GLONASS, Galileo, BeiDou, NavIC and QZSS across L1, L2, L5 and L6 bands
-
Full band operation improves positioning accuracy and signal redundancy
-
Compatible with SBAS and L band correction services for enhanced precision
-
Designed for high-accuracy positioning and timing applications
Anti-Jam and Interference Resilience
-
Low elevation angle nulling reduces interference from near-ground sources
-
Provides wideband suppression of signals at low angles to protect GNSS reception
-
Enables operation closer to jamming sources compared to standard antennas
-
Maintains reliable satellite tracking in high-interference environments
XF+ Filtering and Signal Protection
-
Advanced XF+ filtering delivers strong rejection of out-of-band interference
-
Wideband filtering helps protect against LTE, satellite uplink and marine RF signals
-
Dual-channel architecture separates signal paths to maintain operation if one band is affected
-
Maintains clean signal reception across multiple frequency bands
Signal Quality and Accuracy
-
Circular polarisation supports improved multipath rejection
-
High-gain design with a low-noise amplifier for strong signal acquisition
-
Stable phase centre characteristics for precision positioning
-
High signal-to-noise ratio for reliable navigation and timing performance
Rugged Marine and Industrial Design
-
IP67-rated enclosure for protection against water and dust
-
Designed for marine, offshore and harsh outdoor environments
-
Resistant to vibration and shock for mobile and vessel-based installations
-
Wide operating temperature range for extreme conditions
Installation and Integration
-
Secure mounting design suitable for vehicles, vessels and infrastructure
-
Compatible with GNSS receivers and positioning systems
-
Supports long-term deployment in fixed and mobile installations
-
Flexible integration into marine, transport and industrial platforms
Applications and Use Cases
The AJ979XF+ MAR is suitable for:
-
Marine navigation and offshore positioning
-
Mission-critical positioning and timing systems
-
Law enforcement and public safety
-
Fleet tracking and transport systems
-
Surveying and geospatial applications
Dimensions/Drawings
Download
More Information
| Brand | Calian Group | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Part Number 33-AJ979XF+-MAR-xx
where xx = connector type, 01 = TNC (female), 14 = type-N (female)
