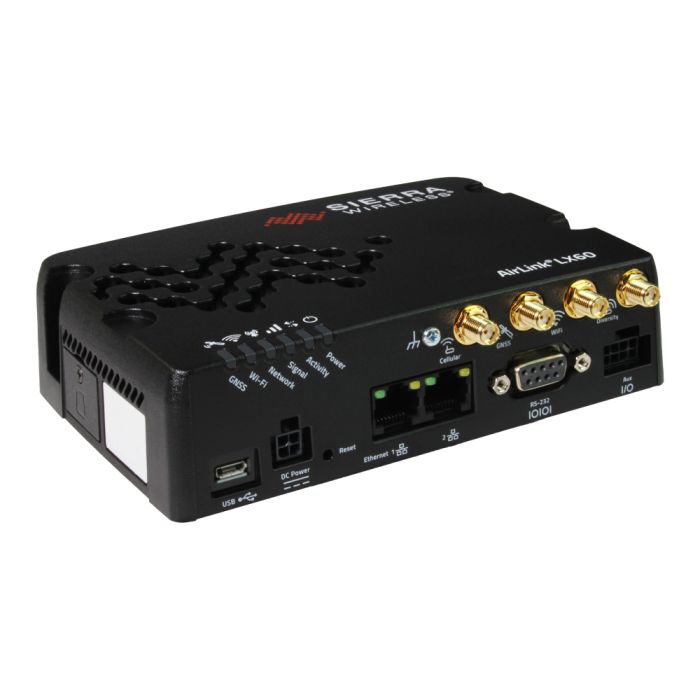

AirLink LX60 Dual Ethernet LTE Router

SKU: LX60

Dual Ethernet 4G Router for primary and secondary/backup retail applications including ATMs, kiosks and POS terminals

See the WIFI + 4G model here

Key Features:

  • 4G Cat-4
  • 2x Ethernet (1 Gbps)
  • Single Serial
  • IP20 Rated
  • AirLink Complete
Datasheet

Description

The AirLink® LX60 provides LTE connectivity and Wi-Fi for primary and secondary/backup retail applications, including ATMs, kiosks, and POS terminals. It also supports taxis, fleets, and IoT infrastructure applications in protected environments.



Download

Aleos User guide 4.17.1
Datasheet
Hardware User guide r3

More Information

Brand Semtech
Specifications

North America
EMEA
Australia & New Zealand
CELLULAR
Peak D/L
Up to 150 Mbps, Cat-4 (WP7610)
Up to 150 Mbps, Cat-4 (WP7607)
Up to 150 Mbps, Cat-4 (WP7609)
Peak U/L
Up to 50 Mbps
Up to 50 Mbps
Up to 50 Mbp
4G LTE
Frequency Bands
B2, B4, B5, B12, B13, B17, B66
B1, B3, B7, B8, B20, B28
B1, B3, B5, B7, B8, B28
3G WCDMA/HSPA+
Frequency Bands
B2, B4, B5
B1, B8
B1, B5, B8
2G GSM/GPRS
Frequency Bands

900, 1800

Approvals
Regulatory
FCC, IC/ISED, PTCRB
GCF, CE
GCF, RCM
Carrier
AT&T, Verizon, T-Mobile


Part Numbers
Part Numbers
1104580, 1104572 (Wi-Fi + GNSS), 1104493 (Wi-Fi + GNSS + Telemetry)
1104046, 1104047 (Wi-Fi + GNSS)
1104048, 1104049 (Wi-Fi + GNSS)

HOST INTERFACES

2 Gigabit RJ-45 Ethernet ports
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector
3 SMA antenna connectors (cellular, diversity, GNSS)
1 RP SMA antenna connector (Wi-Fi)
Active GNSS antenna support
Aux Port (RS-485/GPIO)
SECURITY

Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
Secure Firmware Update
SATELLITE NAVIGATION GNSS (OPTIONAL)

Dedicated 48 channel GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports (Update Rate 1Hz): NMEA, TAIP
Reliable Store and Forward via serial, TCP or UDP
Inertial Navigation Sensors (Accelerometer and Gyro)
WI-FI (OPTIONAL)

Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac (Wave2 Client Mode)
Support for 10 clients, WPA2 Enterprise
Output power 16dBm
Access Point or Client Mode (Wi-Fi as WAN)
Single SSID Support
Captive Portal
LAN (ETHERNET/USB)

DHCP Server
IP Passthrough
VLAN
Host Interface Watchdog
PPPoE
ENVIRONMENTAL
Operating Temperature
-20°C to +65°C / -4°F to +149°F
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
90% RH @ 60°C

Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP20 rated ingress protection
POWER
Input/Operating Voltage
7 to 36 VDC
Power Modes
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking
Ignition Sense with time delay shutdown
INPUT/OUTPUT

Configurable I/O (5 pins total)
  • 5 Digital Inputs: ON Voltage: 2.7 to 36 VDC
  • 1 Digital Open Collector Output > sinking 300 mA
  • 3 Analog Inputs: 0.5-5/0.5-10 VDC (range selectable)
  • Configurable Pull-ups for dry contact input
SERIAL

TCP/UDP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP
DNP3 Interoperability
NETWORK AND ROUTING

Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS
Policy Routing Verizon PNTM
NEMO/DMNR IPV6 Gateway
VRRP
VPN

IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES

Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SNMP
SMS Commands
APPLICATION FRAMEWORK

ALEOS Application Framework (AAF)
LUA Scripting Language
EVENTS ENGINE

Custom event triggers and reports
Configurable interface, no programming
Event Types
Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types
RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions
Drive Relay Output
VEHICLE TELEMETRY

OBD II/ J1939 interface over serial (optional)
Diagnostic real time alerts/reports (via AMM)
INDUSTRY CERTIFICATIONS
Safety
IECE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage
ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environmental
RoHS2, REACH, WEEE
Hazardous Environments
Class 1 Div 2 – Ambient temperatures of 0ºC to +60ºC


ACCESSORIES
In The Box
LX60, DC Power Cable and Quick Start Guide
Other Accessories (sold separately)
  • 2000579 AC Adapter, 12VDC
  • 6001214 DIN Rail Bracket
  • 6001004 I/O Cable
  • 6001110 Cellular Paddle Antenna
  • 6001111 Wi-Fi 2.4/5Hz Paddle Antenna
For Telemetry Variant (1104493):
6001204 OBD-II Y Cable
6001192 J1939 Y Cable
CONSTRUCTION

Polycarbonate housings that meet MIL-810/IP21 environmental standards.
DIMENSIONS

146 mm x 42 mm x 100 mm (106 mm including connectors)
5.74 in x 1.65 in x 3.93 in (4.17 in including connectors) 250g (weight)

Ordering Information

SKU - 1104048
LX60, 4G LTE Router, AU&NZ, includes 1-year AirLink Complete
