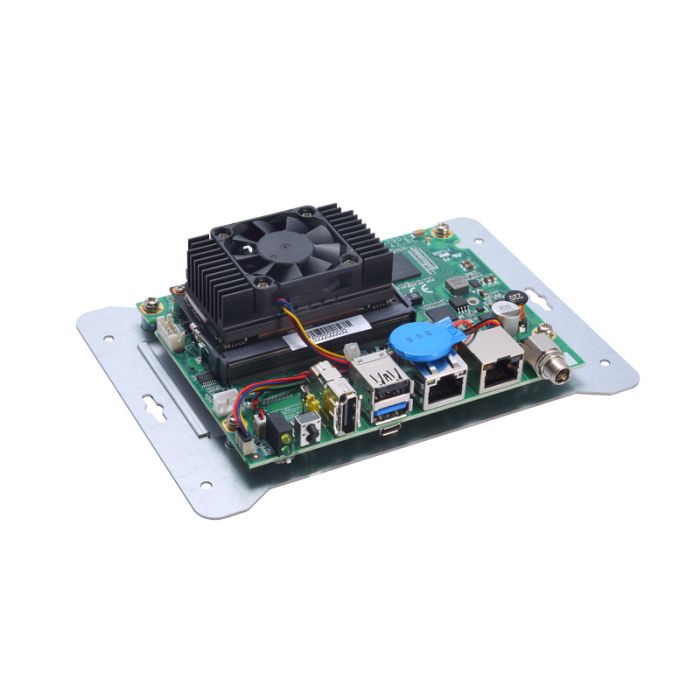

AIE110-XNX Edge AI Developer Kit NVIDIA Jetson Xavier NX

AI Accelerator

NVIDIA® Jetson Xavier™ NX

CPU

6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3

GPU

384-core NVIDIA Volta™ GPU with 48 Tensor Cores

System Memory

8GB 128-bit LPDDR4x onboard

Carrier Board

SBC87903

System I/O Outlet

1 x HDMI 2.0 with 4K2K supported

1 x 10/100/1000 Mbps Ethernet (via Jetson Xavier™ NX)

1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)

1 x USB 3.2 Gen2, 1 x USB 2.0

1 x DIO (pin header)

1 x Micro USB

1 x Recovery switch

1 x Reset button

1 x Power button

1 x 12 VDC power input connector

Watchdog Timer

Built-in Xavier NX

Storage

Onboard 16GB eMMC (via Jetson Xavier™ NX)

1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot

1 x Micro SD slot

*The bootable device supported by eMMC only

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

System Indicator

1 x Green LED for system power-on

1 x Yellow LED for M.2 storage

Power Supply

12 VDC screw type

Operating Temperature

-10°C to +60°C (14°F to +140°F)

Humidity

10% - 95%, non-condensing

Vibration Endurance

3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)

Dimensions

165 mm (6.49") (W) x 117 mm (4.60") (D) x 37.7 mm (1.48") (H)

Weight (net/gross)

0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb)

Certifications

CE, FCC Class A

OS Support

Linux Ubuntu 18.04 or later
