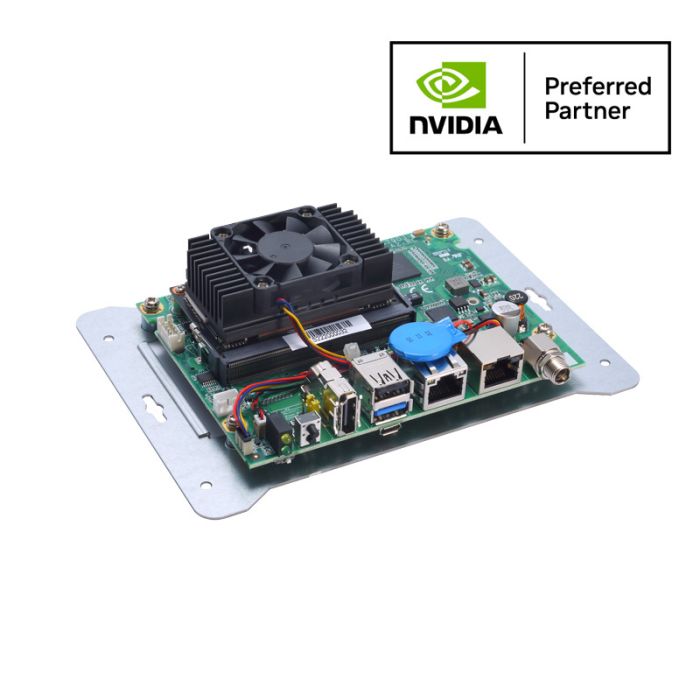

AIE110-ONX Edge AI Developer Kit with NVIDIA® Jetson Orin™

SKU: AIE110-ONX

Axiomtek AIE110-ONX Edge AI Developer Kit NVIDIA® Jetson Orin™ SoM

Key Features:

  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
  • Supports one 15W GbE PoE for camera
  • 1 M.2 Key M NVMe SSD slot
  • 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
Datasheet

Description

The NVIDIA® Jetson Orin™ NX offers exceptional processing power with up to 100 TOPS. It features connectivity options such as 1 USB 2.0 port, 1 USB 3.2 Gen2 port, and 1 GbE LAN port. The device supports a 15W GbE Power over Ethernet (PoE) port specifically designed for camera connectivity. Furthermore, it includes a versatile M.2 Key M NVMe SSD slot for expandable storage and a PCI Express Mini Card slot that enables functionality for Wi-Fi, Bluetooth, LTE, or GPS.

Jetson Orin™ NX is fully compatible with JetPack, a comprehensive software development kit provided by NVIDIA, ensuring seamless development and deployment of applications. It offers robust support for secure 24/7 remote monitoring, control, and over-the-air (OTA) deployment, empowered by Allxon's technology, ensuring continuous operation with enhanced security measures.

Key Features:

  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
  • Supports one 15W GbE PoE for camera
  • 1 M.2 Key M NVMe SSD slot
  • 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Download

Datasheet

More Information

Brand Axiomtek
Specifications
AI Accelerator NVIDIA® Jetson OrinTM NX
CPU 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
  8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
System Memory 16GB: 16GB 128-bit LPDDR5 onboard
  8GB: 8GB 128-bit LPDDR5 onboard
Carrier Board SBC87903
System I/O Outlet 1 x HDMI 2.1 with 4K2K supported
  1 x 10/100/1000 Mbps Ethernet (via Jetson OrinTM NX)
  1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
  1 x USB 3.2 Gen2, 1 x USB 2.0
  1 x DIO (pin header)
  1 x Micro USB
  1 x Recovery switch
  1 x Reset button
  1 x Power button
  1 x 12 VDC power input connector
Watchdog Timer Built-in Orin™ NX
Storage 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  *Orin NX no longer has built-in eMMC and only supports SSD for the bootable device.
  *The AIE110-ONX requires an SSD for image installation. Kindly order the SSD if you need image installation service.
Expansion Interface 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  1 x SIM slot
System Indicator 1 x Green LED for system power-on
  1 x Yellow LED for M.2 storage
Power Supply 12 VDC screw type
Operating Temperature -10°C to +60°C (14°F to +140°F)
Humidity 10% - 95%, non-condensing
Vibration Endurance 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions 165 mm (6.49") (W) x 117 mm (4.60") (D) x 37.7 mm (1.48") (H)
Weight (net/gross) 0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb)
Certifications CE
OS Support Linux Ubuntu 20.04 or later
