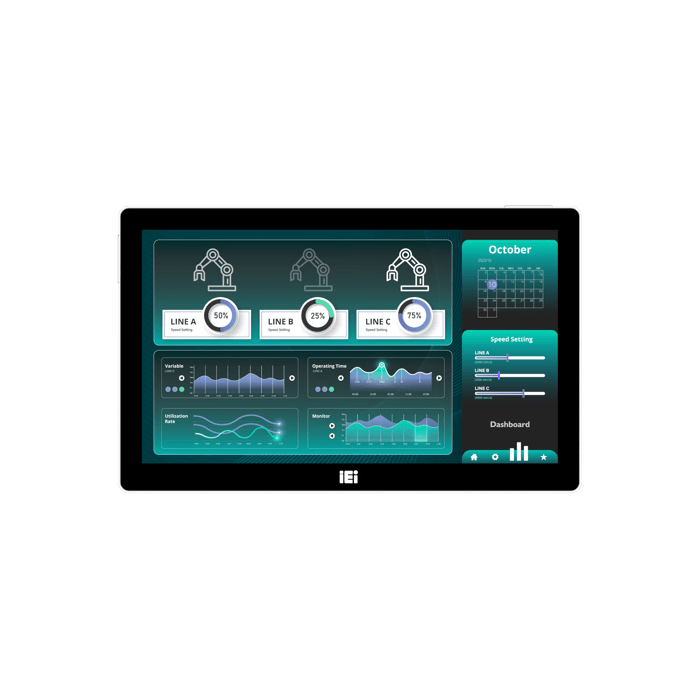

AFL4-W133-ADLP Light Industrial Panel PC
13.3” Fanless Panel PC with Intel Alder Lake-P Core Processor
Key Features:
- Intel Alder Lake-P Platform
- A new narrow bezel design
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Support WiFi 6E and Bluetooth®5.2
Introducing a fanless panel PC featuring a sleek narrow bezel design, powered by the Intel® Alder Lake-P platform with 8GB of onboard memory. This versatile device boasts an HDMI output, dual 2.5GbE LAN ports, four UART ports, five USB ports, and two M.2 M-key expansion slots. Additionally, it sports a 10-point touchscreen with anti-glare and anti-UV coating.
This panel PC is driven by the cutting-edge 12th generation Intel® Alder Lake-P Series processors and an asynchronous architecture, resulting in exceptional performance.
The two M.2 M-key slots are compatible with 2242 and 2280 M.2 modules, offering support for PCIe Gen4 x4 full-speed signals, ensuring enhanced bandwidth and faster speeds.
The 10-point touchscreen, equipped with anti-glare and anti-UV coatings, provides clear visibility without reflections, even in outdoor and brightly lit environments. What's more, it supports glove operation and is waterproof, effectively preventing false touch inputs caused by water spray.
Despite its compact size, this panel PC offers a rich array of I/O options suitable for a wide range of application scenarios. It includes four UART ports, five USB ports, two 2.5G network ports, and an HDMI interface.
Its robust Wi-Fi 6E wireless network capability delivers increased bandwidth, while the low-latency Bluetooth 5.2 connection ensures stability and minimal power consumption.
Hardware Spec.
| System | |
|---|---|
| CPU | 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) |
| On-board Memory | Dual channel On board LPDDR4x 8G |
| Communication | |
| Wireless | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.0 (M.2 2230 A-key) |
| I/O Interface | |
| Ethernet | LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT) |
| Audio | AMP 1.2W (internal speaker) |
| Expansion | 1 x M.2 M key 2242 (PCIE Gen4 x 4) 1 x M.2 M key 2280 (PCIE Gen4 x 4) |
| Audio Codec | Realtek ALC888S |
| Power | |
| Input | 12V DC |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Safety & EMC | CE/EMC, FCC, RED (Class A) |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~ 60°C |
| IP Level | Front panel IP65 |
| Physical Characteristics | |
| Colour | Silver+Black |
| Mounting | Wall, Rack, Stand, ARM, VESA 100 |
| Construction Front Panel | Aluminum die casting+SECC |
| LCD | |
| Size | 13.3” |
| Resolution | 1920 x1080 (16:10) |
| Brightness (cd/m2) | 350(cd/m²) |
| Contrast Ratio | 800:1 |
| Viewing Angle (H-V) | 170°/170° |
| Backlight MTBF | 50000 hours |
| Touch | |
| Touch Screen | Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves) Surface hardness: 7H |
| Touch Controller | EETI EXC 81 Series |
| I/O Interface | |
| I/O Interface | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 2 x LAN (Intel® I225V 2.5GbE controller) | |
| 1 x DC Input Jack | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x USB2.0 | |
| 1 x HDMI™ (up to 3840*2160 @30Hz) | |
| 2 x USB 3.2 Gen2 | |
| OS Support | |
| OS Support | Windows 10 IoT Linux |
Ordering Information
| AFL4-W133-ADLP-i7/8G-R10 | 13.3" 350cd/m² 1920x1080 fanless panel PC with Intel® Core™ i7-1260P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10 |
|---|---|
| AFL4-W133-ADLP-i5/8G-R10 | 13.3" 350cd/m² 1920x1080 fanless panel PC with Intel® Core™ i5-1240Pon-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2module, PCAP touch, 12V DC, R10 |
| AFL4-W133-ADLP-i3/8G-R10 | 13.3" 350cd/m² 1920x1080 fanless panel PC with Intel® Core™ i3-1220P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10 |
Package Contents
