AEx-916AP - 6th gen i series, 316 stainless steel

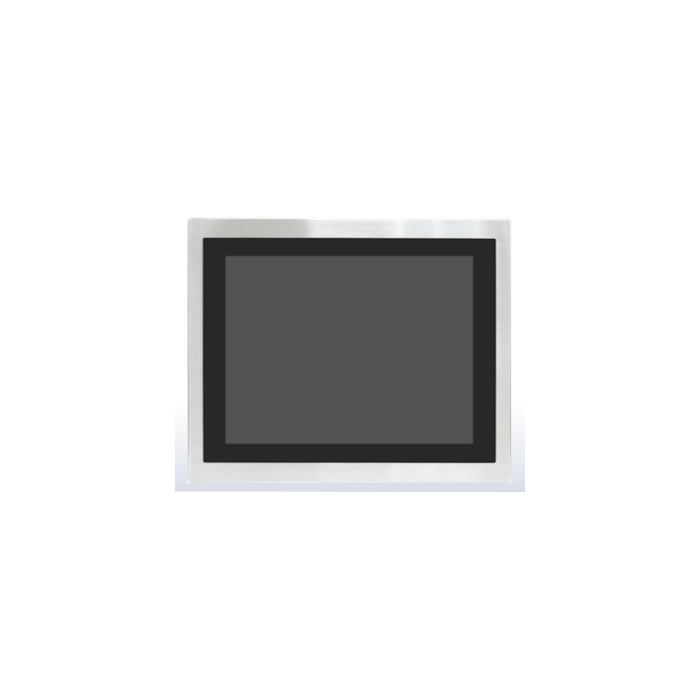

15.6” Intel Skylake IP66 Stainless Steel Panel PC

Enquire Now
Enquire about this product:

15.6" TFT-LCD Intel 6th Gen. Core i3/i5 Processor

SUS 316 Stainless Steel

Total IP66 Grade with M12 Waterproof Connector

Variety of IO applications

Wide range DC 9~36V Power Input

Support Panel Mount & VESA Mount

Support Projected Capacitive Touch Full Flat Bezel and Fanless Design

ATEX Zone2, IECEx and C1D2 Certified

CPU Onboard 6th Gen Intel Core i3/i5 processor
System Chipset SoC
Memory 1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz
Storage Space
HDD 1 x 2.5” HDD or SSD space
1 x mSATA space
Power Input DC 9~36V
Power Consumption AEx-916AP: 27W
Operating Temperature -20~60°C
Storage Temperature -30~70°C
Humidity 10 to 95% @ 40°C, non- condensing
Safety CSA C22.2 No.61010
CE / FCC Class A,
ATEX Zone2 Ex nA ic IIC T4 Gc
Class I, Division2, Group ABCD T4
ANSI/ISA 12.12.01-2013
CSA Std. C22.2 No213-1987
Display Type 15.6” TFT-LCD
Max. Resolution 1920 x 1080
Max. Color 16.7M
Luminance (cd/m2
) 400
View Angle 160(H) /140(V)
Contrast 700:1
Backlight Lifetime 50,000 hrs
Expansion slot 1 x Mini-PCIe (full size)
Ordering Information
15.6" FHD IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SODIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD,
1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power
input with power adapter, 316 stainless steel enclosure, support VESA
Mount, WT-20~60
Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12
COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)
Operating System Support
Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB
Construction 316 stainless steel chassis
Mounting VESA mount 100 x 100, Panel mount (option)
IP Rating Total IP66
Dimensions 440 x 290 x 75 mm
Net Weight 10 kg
IO Port
USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
Serial / Parallel 1 x M12 8-pin for COM1, RS-232/422/485, default RS-232,
with waterproof cover and chain
LAN 2 x M12 8-pin for LAN with waterproof cover and chain
Graph 1 x M12 8-pin for VGA with waterproof cover and chain
Power 1 x M12 3-pin for DC power connector with waterproof cover and
