Shop 86BDL4152T - 86" UHD Touch Display at Tekdis LLC

End of Life

SKU: 86BDL4152T

Signage Size: 86"

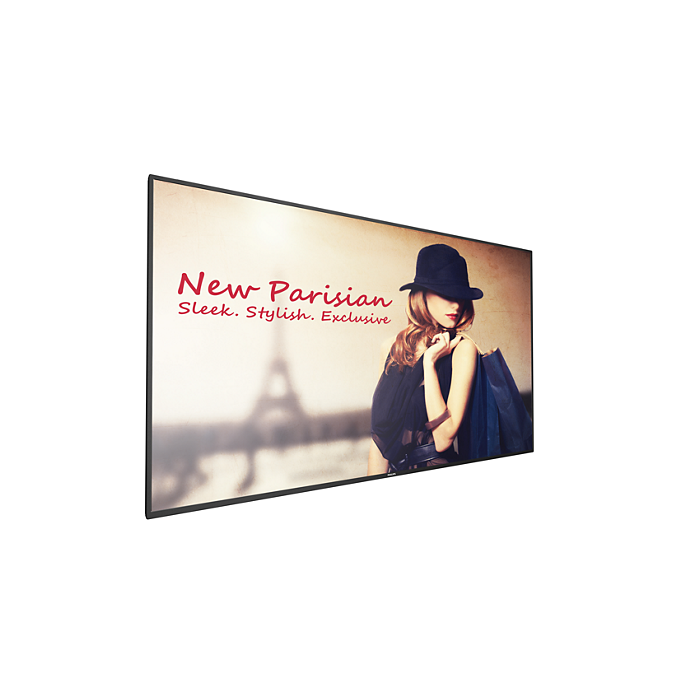

D-Line Display 86" Powered by Android, 500cd/m2, Multi-Touch Display

Description

86" Powered by Android, 500cd/m2, Multi-Touch Display

86"
Powered by Android
500cd/m2

More Information

Brand	Philips
Specifications	Diagonal screen size (inch) 86 inch Diagonal screen size (metric) 218.44 cm Panel resolution 3840 x 2160 Optimum resolution 3840x 2160 @ 60Hz Brightness 500 cd/m² Contrast ratio (typical) 1200 Dynamic contrast ratio 500,000:1 Aspect ratio 16:9 Response time (typical) 12 ms Pixel pitch 0.744 x 0.744 mm Display colors 1.07 billion Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing 3D MA deinterlacing Dynamic contrast enhancement Progressive scan Connectivity Video input DisplayPort (1.2) HDMI (x2) DVI-D USB VGA (via DVI) Video output DisplayPort DVI-I VGA (via DVI-D) Audio input 3.5 mm jack Audio Left/Right (RCA) Audio output Audio Left/Right (RCA) Ext. speaker cntrl (aud. out) Other connections mPCIe micro SD micro USB USB power outlet (5 V. 2 amp) External control RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack Supported Display Resolution Computer formats 1920 x 1080, 60Hz 1440 x 900, 60Hz 1366 x 768, 60Hz 1360 x 768, 60Hz 1280 x 800, 60Hz 1280 x 768, 60Hz 1024 x 768, 60Hz 800 x 600, 56, 60, 72, 75Hz 640 x 480, 60, 67, 72, 75Hz Video formats 1080p, 50, 60Hz 1080i, 50, 60Hz 720p, 50, 60Hz 576i, 50Hz 576p, 50Hz 480p, 60Hz 480i, 60Hz Dimensions Set Width 1967 mm Set Height 1128 mm Set Depth 104.9 mm Set Width (inch) 77.4 inch Set Height (inch) 44.4 inch Set Depth (inch) 4.13 inch Bezel width 9.5 (T/L/R) 15.6 (B) Product weight (lb) 212.1 lb Product weight 96.21 kg VESA Mount 400 x 400, M6 Smart Insert mount 100 x 100 mm, 100 x 200 mm Convenience Placement Landscape (24/7) Portrait (24/7) Tiled Matrix Up to 15 x 15 Keyboard control Hidden Lockable Signal Loop Through DVI VGA RS232 IR Loopthrough DisplayPort Network controllable RJ45 RS232 One Wire (HDMI-CEC) HDMI (One Wire) Energy saving functions Smart Power Screen saving functions Pixel Shift, Low Bright Ease of installation Smart Insert Picture in picture PIP Power Standby power consumption <0.4 W Mains power 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (EPA 6.0) 99 W Consumption (Typical) 103 W Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Relative humidity 20 ~ 80 % Altitude 0 ~ 3000 m MTBF 50,000 hour(s) Sound Built-in speakers 2 x 10W RMS Accessories Included accessories Remote Control Batteries for remote control Quick start guide RS232 cable AC Power Cord Stand BMO5922 (Optional) Optional accessories ColourCalibrationKit (CCK4602) Multimedia Applications USB Playback Audio AAC AIF AIFF M4A MP3 WAV WMA ASF LPCM M3U MP4 USB Playback Picture BMP GIF JPEG JPG PDF USB Playback Video M2TS M4V MK3D MKV MP4 MPEG MPG MTS TS TTS VOB WMV Miscellaneous On-Screen Display Languages English French German Spanish Polish Turkish Russian Italian Simplified Chinese Traditional Chinese Arabic Japanese Danish Dutch Finnish Norwegian Portuguese Swedish Regulatory approvals EnergyStar 7.0 CE FCC, Class B UL/cUL CCC C-Tick RoHS GOST BSMI CB J-Moss PSE VCCI Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (inch)

86 inch

Diagonal screen size (metric)

218.44 cm

Panel resolution

3840 x 2160

Optimum resolution

3840x 2160 @ 60Hz

Brightness

500 cd/m²

Contrast ratio (typical)

1200

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

12 ms

Pixel pitch

0.744 x 0.744 mm

Display colors

1.07 billion

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Connectivity
Video input
- DisplayPort (1.2)
- HDMI (x2)
- DVI-D
- USB
- VGA (via DVI)
Video output
- DisplayPort
- DVI-I
- VGA (via DVI-D)
Audio input
- 3.5 mm jack
- Audio Left/Right (RCA)
Audio output
- Audio Left/Right (RCA)
- Ext. speaker cntrl (aud. out)
Other connections
- mPCIe
- micro SD
- micro USB
- USB power outlet (5 V. 2 amp)
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1440 x 900, 60Hz
- 1366 x 768, 60Hz
- 1360 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60Hz
- 800 x 600, 56, 60, 72, 75Hz
- 640 x 480, 60, 67, 72, 75Hz
Video formats
- 1080p, 50, 60Hz
- 1080i, 50, 60Hz
- 720p, 50, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 480p, 60Hz
- 480i, 60Hz
Dimensions

Set Width

1967 mm

Set Height

1128 mm

Set Depth

104.9 mm

Set Width (inch)

77.4 inch

Set Height (inch)

44.4 inch

Set Depth (inch)

4.13 inch

Bezel width

9.5 (T/L/R) 15.6 (B)

Product weight (lb)

212.1 lb

Product weight

96.21 kg

VESA Mount

400 x 400, M6

Smart Insert mount

100 x 100 mm, 100 x 200 mm
Convenience
Placement
- Landscape (24/7)
- Portrait (24/7)
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal Loop Through
- DVI
- VGA
- RS232
- IR Loopthrough
- DisplayPort
Network controllable
- RJ45
- RS232
- One Wire (HDMI-CEC)
- HDMI (One Wire)
Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation

Smart Insert

Picture in picture

PIP
Power

Standby power consumption

<0.4 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (EPA 6.0)

99 W

Consumption (Typical)

103 W
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 ~ 80 %

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- RS232 cable
- AC Power Cord
Stand

BMO5922 (Optional)

Optional accessories

ColourCalibrationKit (CCK4602)
Multimedia Applications
USB Playback Audio
- AAC
- AIF
- AIFF
- M4A
- MP3
- WAV
- WMA
- ASF
- LPCM
- M3U
- MP4
USB Playback Picture
- BMP
- GIF
- JPEG
- JPG
- PDF
USB Playback Video
- M2TS
- M4V
- MK3D
- MKV
- MP4
- MPEG
- MPG
- MTS
- TS
- TTS
- VOB
- WMV
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- EnergyStar 7.0
- CE
- FCC, Class B
- UL/cUL
- CCC
- C-Tick
- RoHS
- GOST
- BSMI
- CB
- J-Moss
- PSE
- VCCI
Warranty

3 year warranty
