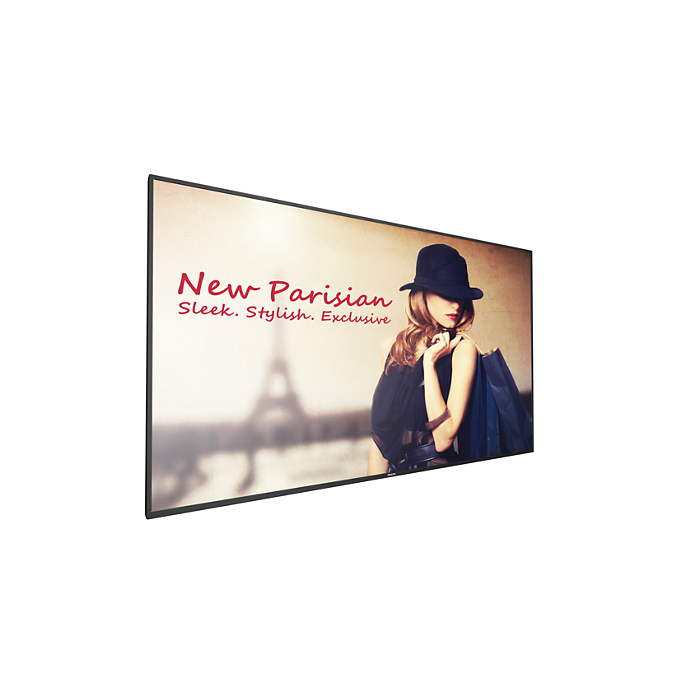

86BDL4150D - 86" UHD Android Display
End of Life
D-Line Display 86" Powered by Android, 500cd/m2
Enquire Now
Enquire about this product:
86" Powered by Android, 500cd/m2
- 86"
- Powered by Android
- 500cd/m2
-
- Diagonal screen size (inch)
-
85.6 inch
- Diagonal screen size (metric)
-
217.4 cm
- Panel resolution
-
3840 x 2160
- Optimum resolution
-
3840 x 2160 @60HZ
- Brightness
-
500 cd/m²
- Contrast ratio (typical)
-
1200:1
- Dynamic contrast ratio
-
500,000:1
- Aspect ratio
-
16:9
- Response time (typical)
-
12 ms
- Pixel pitch
-
0.4935 x 0.4935 mm
- Display colors
-
1.07 Billion
- Viewing angle (horizontal)
-
178 degree
- Viewing angle (vertical)
-
178 degree
- Picture enhancement
-
-
3/2 - 2/2 motion pull down
-
3D Combfilter
-
Motion compens. deinterlacing
-
3D MA deinterlacing
-
Dynamic contrast enhancement
-
Progressive scan
-
- Operating system
-
Android 7.1.2
-
Connectivity
- Video input
-
-
DisplayPort
-
DVI-D
-
HDMI (x3)
-
VGA (Analog D-Sub)
-
- Video output
-
DisplayPort
- Audio input
-
3.5 mm jack
- Audio output
-
3.5mm jack
- Other connections
-
-
mPCIe
-
micro SD
-
micro USB
-
USB power outlet (5 V. 2 amp)
-
OPS
-
USB, type A
-
- External control
-
-
RJ45
-
RS232C (in/out) 2.5 mm jack
-
-
Supported Display Resolution
- Computer formats
-
-
3840 x 2160, 60Hz
-
1920 x 1080, 60Hz
-
1600 x 1200, 60Hz
-
1360 x 768, 60Hz
-
1280 x 1024, 60Hz
-
1280 x 800, 60Hz
-
1280 x 768, 60Hz
-
1024 x 768, 60, 75Hz
-
640 x 480, 60, 72, 75Hz
-
720 x 400, 70Hz
-
800 x 600, 60, 75Hz
-
- Video formats
-
-
2160p, 30,50, 60Hz
-
1080p, 50, 60Hz
-
1080i, 25, 30Hz
-
720p, 50, 60Hz
-
576i, 25, 50Hz
-
576p, 25, 50Hz
-
480i, 30, 60Hz
-
480p, 30, 60Hz
-
-
Dimensions
- Set Width
-
1927.9 mm
- Set Height
-
1098.9 mm
- Set Depth
-
85.9 mm
- Set Width (inch)
-
75.90 inch
- Set Height (inch)
-
43.26 inch
- Set Depth (inch)
-
3.38 inch
- Bezel width
-
15.2 (T/L/R/B)
- Product weight (lb)
-
140.65 lb
- Product weight
-
63.8 kg
- VESA Mount
-
600(H)x400(V) mm, M8
- Smart Insert mount
-
100 x 200 mm
-
Convenience
- Placement
-
-
Landscape
-
Portrait
-
- Tiled Matrix
-
Up to 15 x 15
- Keyboard control
-
-
Hidden
-
Lockable
-
- Signal Loop Through
-
IR Loopthrough
- Network controllable
-
-
RJ45
-
RS232
-
- Energy saving functions
-
Smart Power
- Screen saving functions
-
Pixel Shift, Low Bright
- Ease of installation
-
Smart Insert
- Picture in picture
-
PIP
-
Power
- Standby power consumption
-
<0.5 W
- Mains power
-
100 ~ 240 VAC, 50 ~ 60 Hz
- Consumption (Typical)
-
220W +/- 10% W
-
Operating conditions
- Temperature range (operation)
-
0 ~ 40 °C
- Temperature range (storage)
-
-20 ~ 60 °C
- Relative humidity
-
20 %~ 80%(operation),10%-90%(storage) %
- Altitude
-
0 ~ 3000 m
- MTBF
-
50,000 hour(s)
-
Sound
- Built-in speakers
-
2 x 10W RMS
-
Accessories
- Included accessories
-
-
Remote Control
-
Batteries for remote control
-
Quick start guide
-
RS232 cable
-
AC Power Cord
-
HDMI cable
-
IR sensor cable (1.8M)
-
- Included Accessories
-
-
RS232 daisy-chain cable
-
SD card cover
-
-
Multimedia Applications
- USB Playback Audio
-
-
AAC
-
M4A
-
MP3
-
WMA
-
- USB Playback Picture
-
-
BMP
-
JPEG
-
JPG
-
PNG
-
- USB Playback Video
-
-
ASF
-
AVI
-
DAT
-
FLV
-
MKV
-
MP4
-
MPEG
-
MPG
-
TS
-
VOB
-
WEBM
-
WMV
-
-
Miscellaneous
- On-Screen Display Languages
-
-
English
-
French
-
German
-
Spanish
-
Polish
-
Turkish
-
Russian
-
Italian
-
Simplified Chinese
-
Traditional Chinese
-
Arabic
-
Japanese
-
Danish
-
Dutch
-
Finnish
-
Norwegian
-
Portuguese
-
Swedish
-
- Regulatory approvals
-
-
CE
-
FCC, Class B
-
UL/cUL
-
C-Tick
-
RoHS
-
GOST
-
BSMI
-
CB
-
- Warranty
-
3 year warranty
