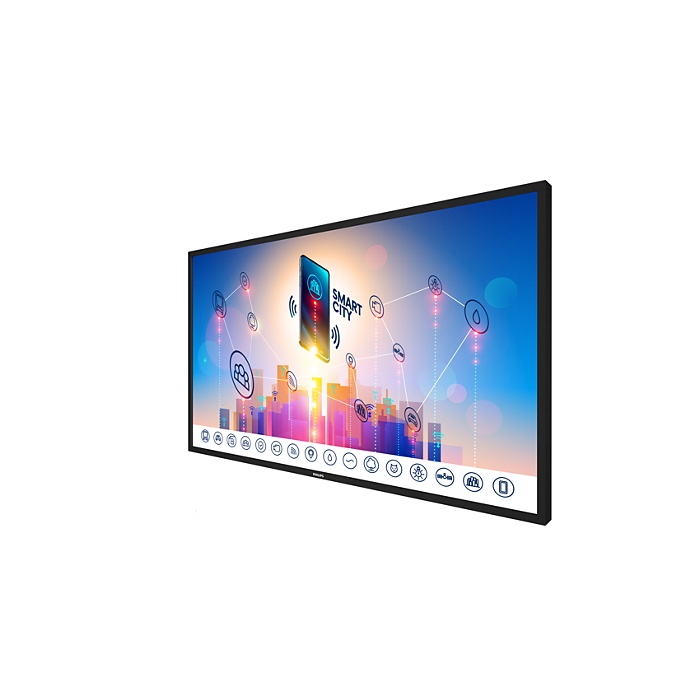

86BDL3012T 86" UHD Touch Display

End of Life
SKU: 86BDL3012T
Signage Size
86"

Multi-Touch Display 86" 4K UHD (3840 x 2160), 410cd/m2

Datasheet

Description

This responsive Multi-Touch Professional UHD Display is perfect for multi-finger, multi-user applications-from wayfinding to presentations. Up to 20 touchpoints can be active at once.

Superb picture. Responsive touchscreen.

  • 4K UHD. Rich, deep images. Beautiful contrast
  • Plug-and-play 20-point Multi-Touch display

Effortless setup. Total control.

  • Operate, monitor and maintain with CMND & Control
  • Add Android processing power with an optional CRD50 module

Versatile system solution

  • Energy-saving automatic backlight control
  • QuadViewer. Play four source signals on one screen.
  • OPS slot allows for PC embedding without cabling
  • FailOver ensures content is always playing

Download

Datasheet

More Information

Brand Philips
Specifications

    • Picture/Display

      Diagonal screen size (inch)
      85.6  inch
      Diagonal screen size (metric)
      217.4  cm
      Panel resolution
      3840 x 2160
      Optimum resolution
      3840x 2160 @ 60Hz
      Brightness
      410  cd/m²
      Contrast ratio (typical)
      1200:1
      Dynamic contrast ratio
      500,000:1
      Aspect ratio
      16:9
      Response time (typical)
      8  ms
      Pixel pitch
      0.4935x0.4935 mm
      Display colours
      1.07 billion
      Viewing angle (horizontal)
      178  degree
      Viewing angle (vertical)
      178  degree
      Picture enhancement
      • 3/2 - 2/2 motion pull down
      • 3D Comb filter
      • Motion compens. deinterlacing
      • 3D MA deinterlacing
      • Dynamic contrast enhancement
      • Progressive scan

    • Connectivity

      Video input
      • DisplayPort (1.2)
      • DVI-D
      • HDMI (x3)
      • VGA (Analog D-Sub)
      • Component (RCA)
      Video output
      DisplayPort
      Audio input
      • 3.5 mm jack
      • Audio Left/Right (RCA)
      Audio output
      • 3.5mm jack
      • External speaker connector
      • SPDIF
      Other connections
      • micro USB
      • OPS
      External control
      • RJ45
      • RS232C (in/out) 2.5 mm jack
      • IR (in/out) 3.5 mm jack

    • Supported Display Resolution

      Computer formats
      • 1024 x 768, 43, 60,70,75Hz
      • 1152 x 864, 60, 70, 75Hz
      • 1152 x 870, 75Hz
      • 1152 x 900, 66,76Hz
      • 1280 x 1024, 60,67,71,75,76Hz
      • 1280 x 720, 60,70Hz
      • 1280 x 768, 60Hz, 75Hz
      • 1280 x 800, 60,75Hz
      • 1280 x 960, 60,75Hz
      • 1360 x 768, 60Hz
      • 1366 x 768, 60Hz
      • 1400 x 1050 ,60, 75Hz
      • 1400 x 1050, 60Hz
      • 1440 x 1050, 60Hz
      • 1440 x 900, 60, 75Hz
      • 1600 x 1200, 60Hz
      • 1600 x 900, 60Hz
      • 1680 x 1050, 60Hz
      • 1920 x 1080, 60Hz
      • 1920 x 1200, 60Hz
      • 640 x 350, 70Hz
      • 640 x 480, 60, 67, 72, 75Hz
      • 720 x 400, 70Hz
      • 800 x 600, 56, 60, 72, 75Hz
      • 832 x 624, 75Hz
      • 848 x 480, 60Hz
      • 960 x 720, 60,75Hz
      UHD Formats
      • 3840 x 2160, 24, 25, 30, 60 Hz
      • 4096 x 2160, 24 Hz
      Video formats
      • 1080i, 50Hz
      • 1080p, 60Hz
      • 480i, 60Hz
      • 480p, 60Hz
      • 4K x 2K
      • 576i, 50Hz
      • 576p, 50Hz
      • 720p, 60Hz

    • Dimensions

      Set Width
      1957  mm
      Set Height
      1128  mm
      Set Depth
      98.4  mm
      Set Width (inch)
      77.04  inch
      Set Height (inch)
      44.40  inch
      Set Depth (inch)
      3.87  inch
      Bezel width
      28.4mm(T/L/R/B)
      Product weight (lb)
      201.2  lb
      Product weight
      91.26  kg
      VESA Mount
      600(H)x400(V) mm, M8
      Smart Insert mount
      100 x 200 mm

    • Convenience

      Placement
      Landscape
      Tiled Matrix
      Up to 15 x 15
      Keyboard control
      • Hidden
      • Lockable
      Signal loop through
      • RS232
      • IR Loop through
      Network controllable
      • RJ45
      • RS232
      Energy-saving functions
      Smart Power
      Screen saving functions
      Low Bright
      Ease of installation
      Smart Insert
      Picture in picture
      PIP

    • Power

      Standby power consumption
      <0.5 W
      Mains power
      100 - 240V~, 50 - 60Hz, 7.5A
      Consumption (Typical)
      317  W
      Consumption (Max)
      471 W
      Energy Label Class
      G

    • Operating conditions

      Temperature range (operation)
      0 ~ 40  °C
      Temperature range (storage)
      -20 ~ 60  °C
      Relative humidity
      20 ~ 80  %
      Altitude
      0 ~ 3000 m
      MTBF
      50,000  hour(s)

    • Sound

      Built-in speakers
      2 x 10W RMS

    • Accessories

      Included accessories
      • Remote Control
      • Batteries for remote control
      • Quick start guide
      • RS232 cable
      • AC Power Cord
      • HDMI cable
      • IR sensor cable (1.8M)
      • USB cable
      Included Accessories
      RS232 daisy-chain cable

    • Multimedia Applications

      USB Playback Audio
      • AAC
      • AIF
      • AIFF
      • ASF
      • M3U
      • M4A
      • MP3
      • MP4
      • PLS
      • WAV
      • WMA
      USB Playback Video
      • ISM
      • M2TS
      • M4V
      • Manifest
      • MK3D
      • MKV
      • MP4
      • MPD
      • MPEG
      • MPG
      • MT2
      • MTS
      • TS
      • VOB
      USB Playback Picture
      • BMP
      • GIF
      • JPEG
      • PNG

    • Miscellaneous

      On-Screen Display Languages
      • English
      • French
      • German
      • Spanish
      • Polish
      • Turkish
      • Russian
      • Italian
      • Simplified Chinese
      • Traditional Chinese
      • Arabic
      • Japanese
      • Danish
      • Dutch
      • Finnish
      • Norwegian
      • Portuguese
      • Swedish
      Regulatory approvals
      • CE
      • UL/cUL
      • CCC
      • RoHS
      • BSMI
      • CB
      • VCCI
      • EAC
      • FCC, Class B
      • PSB
      Warranty
      3-year warranty

    Other items in the box

    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • RS232 cable
    • AC Power Cord
    • HDMI cable
    • IR sensor cable (1.8M)
    • USB cable
