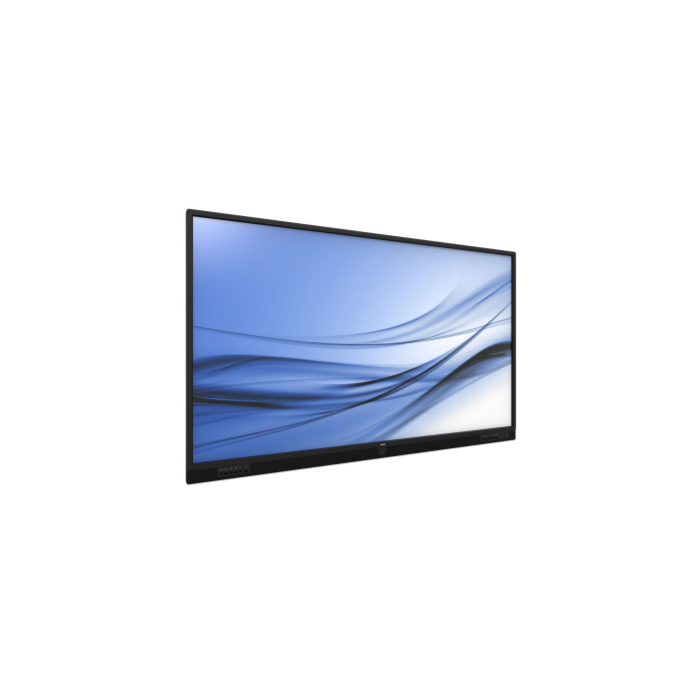

75BDL3151T - 75" UHD Android Touch Display

Connectivity

Video input

• Composite (RCA)
• HDMI
• HDMI (x4)
• VGA(Analog D-Sub) x2

Video output

• HDMI
• VGA (Analog D-Sub)

Audio input

• Audio Left/Right (RCA)
• 3.5mm jack (x2)
• 3.5 mm jack

Audio output

SPDIF

Other connections

• OPS
• USB power outlet (5 V. 2 amp)
• USB(Type A) X4
• USB(Type B) X2

Supported Display Resolution

Computer formats

• 1024 x 768, 60, 75Hz
• 1280 x 1024, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1360 x 768, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 3840 x 2160, 60Hz
• 640 x 480, 60, 72, 75Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 75Hz

Video formats

• 1080p, 50, 60Hz
• 1080i, 25, 30Hz
• 480i, 30, 60Hz
• 576i, 25, 50Hz
• 720p, 50, 60Hz
• 2160p, 30,50, 60Hz
• 480p, 30, 60Hz
• 576p, 25, 50Hz

Convenience

Placement

Landscape (18/7)

Signal Loop Through

IR Loopthrough

Network controllable

• RS232
• RJ45

Picture performance

Advanced color control

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Remote control signal

Lockable

Energy saving functions

Smart Power

Other convenience

Carrying handles

Ease of installation

Smart Insert

Memory

8GB eMMC

Dimensions

Bezel width

21.7 mm

Set Width

1739.7  mm

Set Height

1072.8  mm

Set Depth

99.0  mm

Set Width (inch)

68.49  inch

Set Height (inch)

42.24  inch

Set Depth (inch)

3.90  inch

VESA Mount

400(H)x400(V), M8

Product weight

64.7  kg

Product weight (lb)

142.64  lb

Smart Insert mount

100 x 200 mm

Sound

Built-in speakers

2 x 15W RMS

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Relative humidity

20 ~ 80%(Operational),10 - 90%(Storage)  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20 ~ 60  °C

Power

Mains power

100 ~ 240 VAC, 50/60Hz

Standby power consumption

<0.5W

Consumption (Typical)

350  W

Power Saving Features

Smart Power

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• USB cable
• Remote Control
• Batteries for remote control
• Quick start guide
• HDMI cable
• VGA cable

Included Accessories

OPS Android player(CRD50)

Miscellaneous

On-Screen Display Languages

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Portuguese

Regulatory approvals

• CE
• BSMI
• CB
• EPA
• FCC, Class B

Warranty

3 year warranty
