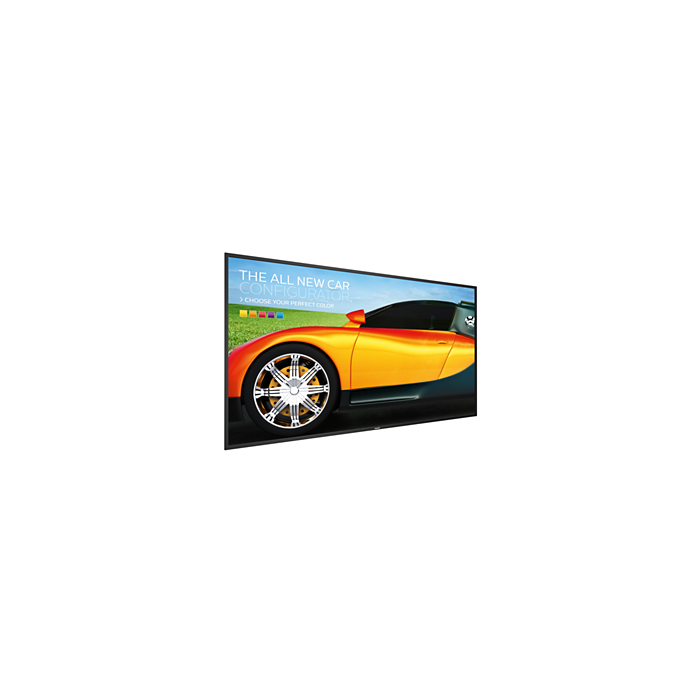

75BDL3050Q - 75" 16/7 4K UHD Display

End of Life
SKU: 75BDL3050Q
Signage Size
75"

Q-Line Display 75" 4K UHD (3840 x 2160), Ultra HD

Datasheet

Description

75" 4K UHD (3840 x 2160), Ultra HD



  •     75"
  •     4K UHD (3840 x 2160)
  •     Ultra HD

Download

Datasheet

More Information

Brand Philips
Specifications
  • Diagonal screen size (inch)
    74.52  inch
    Panel resolution
    3840 x 2160
    Optimum resolution
    3840 x 2160 @ 60 Hz
    Brightness
    410  cd/m²
    Contrast ratio (typical)
    1200:1
    Response time (typical)
    8  ms
    Aspect ratio
    16:9
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Pixel pitch
    0.429 x 0.429 mm
    Display colors
    1.07 Billion
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Color Enhancement
    • Color Temperature Adjustment
    • De-interlacer
    • Noise Reduction
    • Smart Picture
    Diagonal screen size (metric)
    189.27  cm
    Operating system
    Android 5.0.1
    Panel technology
    IPS

  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60, 72, 75Hz
    • 720 x 400, 70Hz
    • 800 x 600, 60, 75Hz
    • 1024 x 768, 60, 75Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 1024, 60Hz
    • 1360 x 768, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 3840 x 2160, 30, 60Hz
    Video formats
    • 480i, 30, 60Hz
    • 480p, 30, 60Hz
    • 576i, 25, 50Hz
    • 576p, 25, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 25, 30Hz
    • 1080p, 50, 60Hz
    • 2160p, 30,50, 60Hz

  • Connectivity

    Video input
    • VGA (Analog D-Sub)
    • DisplayPort (1.2)
    • HDMI (x4)
    • USB 2.0 (Type A) (x2)
    Audio input
    3.5 mm jack
    Audio output
    Audio Left/Right (RCA)
    External control
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    • RJ45
    Other connections
    • OPS
    • IR out
    • AC-out
    • Analog (D-sub input)
    • Analog audio Left/Right out
    • Display Port
    • HDMI
    • micro SD
    • PC Audio in
    • RS232 Serial
    • USB 2.0
    • USB power outlet (5 V. 2 amp)

  • Convenience

    Screen saving functions
    Pixel Shift, Low Brightness
    Keyboard control
    Lockable
    Network controllable
    • LAN (RJ45)
    • RS232
    • Card OPS RS232
    • HDMI (One Wire)
    Signal Loop Through
    • RS232
    • IR Loopthrough
    Ease of installation
    • Smart Insert
    • AC Out
    • Carrying Handles
    Energy saving functions
    Smart Power
    Placement
    Landscape (18/7)
    Remote control signal
    Lockable
    Tiled Matrix
    Up to 10 x 15
    Memory
    8GB eMMC

  • Dimensions

    Bezel width
    12.5 (Top/Left/Right) 16.0 (Bottom) mm
    Set Width
    1676.6  mm
    Set Height
    955  mm
    Set Depth
    73.8  mm
    Set Width (inch)
    66.01  inch
    Set Height (inch)
    37.60  inch
    Set Depth (inch)
    2.91  inch
    Product weight
    53.3  kg
    Product weight (lb)
    117.5  lb
    VESA Mount
    600 x 400 mm M8

  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Relative humidity
    20 ~ 80 (operation),10 - 90%(storage)  %
    MTBF
    50,000  hour(s)

  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (On mode)
    237 W
    Standby power consumption
    <0.5W
    Power Saving Features
    Smart Power

  • Sound

    Built-in speakers
    2 x 10W RMS

  • Accessories

    Included accessories
    • AC Power Cord
    • RS232 cable
    • Batteries for remote control
    • Quick start guide
    • Remote Control
    • HDMI cable
    • IR sensor cable (1.8M)
    Included Accessories
    • RS232 daisy-chain cable
    • USB Cover and screw x1

  • Multimedia Applications

    USB Playback Video
    • MKV
    • MP4
    • MPEG
    • MPG
    • TS
    • WMV
    • ASF
    • AVI
    • DAT
    • FLV
    • MOV
    • TRP
    • VOB
    • WEBM
    USB Playback Picture
    • BMP
    • JPEG
    • JPG
    • PNG
    USB Playback Audio
    • AAC
    • M4A
    • MP3
    • WMA

  • Miscellaneous

    Warranty
    3 year warranty
    On-Screen Display Languages
    • Arabic
    • Simplified Chinese
    • Traditional Chinese
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Japanese
    • Czech
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Regulatory approvals
    • CE
    • UL/cUL
    • CB
    • FCC, Class B
    • BSMI
    • CCC
    • EAC
    • EMF
    • PSB

  • Internal Player

    Storage
    8GB eMMC
    CPU
    Quad Core Full HD
    Memory
    2GB DDR3

Included accessories

  • AC Power Cord
  • RS232 cable
  • Batteries for remote control
  • Quick start guide
  • Remote Control
  • HDMI cable
  • IR sensor cable (1.8M)
