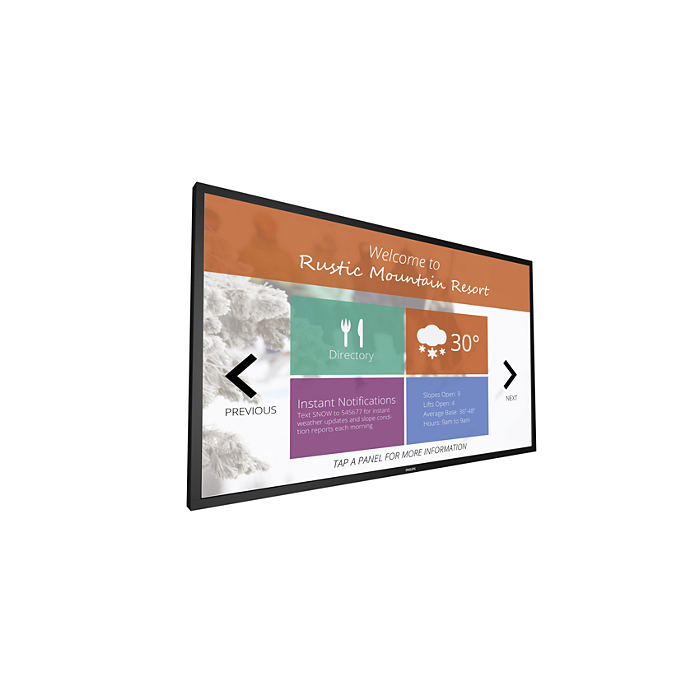

75BDL3010T 75" UHD Touch Display

Connectivity

Video input

• DisplayPort (1.2)
• DVI-D
• VGA (Analog D-Sub)
• Component (RCA)
• Composite (RCA)
• HDMI (x3)

Video output

DisplayPort

Audio input

• Audio Left/Right (RCA)
• 3.5 mm jack

Audio output

• External speaker connector
• 3.5mm jack
• SPDIF

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Other connections

• USB
• OPS
• AC-out

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1280 x 1024, 60Hz
• 1360 x 768, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz
• 3840 x 2160, 30Hz
• 3840 x 2160, 60Hz

Video formats

• 480p, 60Hz
• 480i, 30, 60Hz
• 576p, 50Hz
• 576i, 25, 50Hz
• 720p, 50, 60Hz
• 1080i, 25, 30Hz
• 1080p, 50, 60Hz
• 3840 x 2160, 30Hz
• 3840 x 2160, 60Hz

Convenience

Placement

Landscape (16/7)

Signal Loop Through

• RS232
• IR Loopthrough
• DisplayPort

Network controllable

• RS232
• HDMI (One Wire)
• LAN (RJ45)

Picture performance

Advanced color control

Picture in picture

PIP

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Remote control signal

Lockable

Energy saving functions

Smart Power

Other convenience

Carrying handles

Ease of installation

Smart Insert

Dimensions

Bezel width

29.20 mm

Set Width

1709.70  mm

Set Height

988.60  mm

Set Depth

92.50  mm

Set Width (inch)

67.31  inch

Set Height (inch)

38.92  inch

Set Depth (inch)

3.64  inch

VESA Mount

600 x 400, M8

Product weight

75  kg

Product weight (lb)

165.35  lb

Smart Insert mount

100 x 100 mm, 100 x 200 mm

Sound

Built-in speakers

2 x 10W RMS

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20 ~ 60  °C

Power

Mains power

100 ~ 240 VAC, 50/60Hz

Standby power consumption

<0.5W

Consumption (Typical)

200  W

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• USB cable
• Remote Control
• Batteries for remote control
• Quick start guide
• User manual on CD-ROM
• HDMI cable

Optional accessories

• HDBaseT OPS Receiver (CRD25)
• IR Light Motion Sensor (CRD41)

Miscellaneous

On-Screen Display Languages

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Portuguese

Regulatory approvals

• CE
• CCC
• UL/cUL
• RoHS
• C-Tick
• FCC, Class A
• GOST

Warranty

3 year warranty
