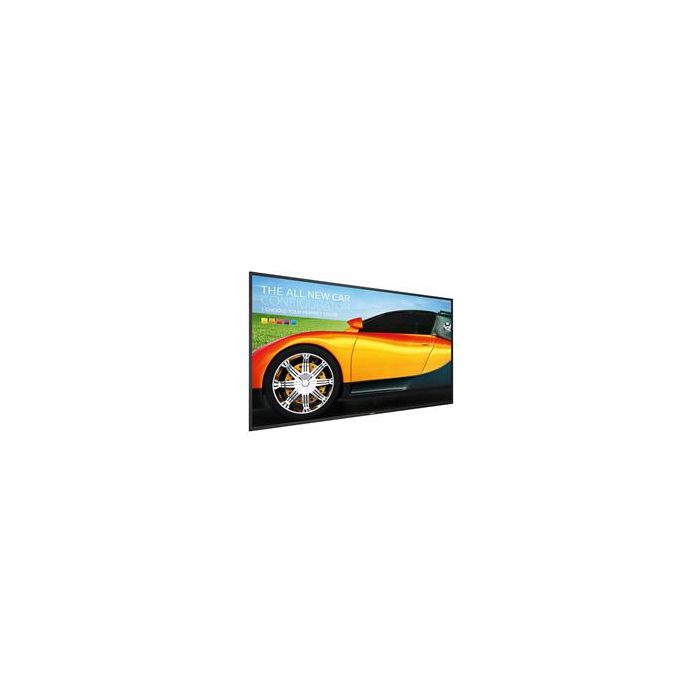

Shop 65BDL3000Q - 65" Full HD Display at Tekdis LLC

End of Life

SKU: 65BDL3000Q

Signage Size: 65"

Q-Line Display 65" Direct LED Backlight, Full HD

Datasheet

Description

65" Direct LED Backlight, Full HD

65"
Direct LED Backlight
Full HD

Download

Datasheet

More Information

Brand	Philips
Specifications	Diagonal screen size (inch) 65 inch Diagonal screen size (metric) 163.9 cm Panel resolution 1920x1080p Optimum resolution 1920 x 1080 @ 60 Hz Brightness 350 cd/m² Contrast ratio (typical) 3000:1 Dynamic contrast ratio 500,000:1 Response time (typical) 8 ms Aspect ratio 16:9 Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Pixel pitch 0.74 x 0.74 mm Display colors 1.07 Billion Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing Progressive scan 3D MA deinterlacing Dynamic contrast enhancement Panel technology VA Supported Display Resolution Computer formats 640 x 480, 60, 67, 72, 75Hz 1024 x 768, 60Hz 1280 x 768, 60Hz 1280 x 800, 60Hz 1360 x 768, 60Hz 1600 x 1200, 60Hz 1920 x 1080, 60Hz 1920 x 1200, 60Hz 1280 x 1024, 60Hz 720 x 400, 70Hz 800 x 600, 60, 72, 75Hz Video formats 480p, 60Hz 576p, 50Hz 720p, 50, 60Hz 1080p, 50, 60Hz 1080i, 25, 30Hz 480i, 30, 60Hz 576i, 25, 50Hz Connectivity Video input DVI-D VGA (Analog D-Sub) USB Component (BNC) Composite (BNC) DisplayPort (1.2) HDMI (x2) Audio input 3.5 mm jack Audio Left/Right (RCA) Audio output Audio Left/Right (RCA) External speaker connector External control RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack RJ45 Video output DisplayPort DVI-I VGA (via DVI-D) Other connections OPS USB Convenience Screen saving functions Pixel Shift, Low Brightness Keyboard control Hidden Lockable Network controllable LAN (RJ45) RS232 One Wire (HDMI-CEC) Signal Loop Through DisplayPort DVI VGA RS232 Ease of installation Smart Insert Energy saving functions Smart Power Placement Landscape Remote control signal Lockable Tiled Matrix Up to 10 x 15 Dimensions Bezel width 13.9 (Top/Left/Right) 14.9 (Bottom) mm Set Width 1458.7 mm Set Height 834.7 mm Set Depth 81.6 mm Set Width (inch) 57.43 inch Set Height (inch) 32.86 inch Set Depth (inch) 3.21 inch Product weight 24.8 kg Product weight (lb) 54.7 lb VESA Mount 400 x 400 mm, M6 Smart Insert mount 100 x 100 mm, 100 x 200 mm Operating conditions Altitude 0 ~ 3000 m Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Relative humidity 20 ~ 80 % MTBF 50,000 hour(s) Power Mains power 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (On mode) 176 W Standby power consumption <0.5W Power Saving Features Smart Power Sound Built-in speakers 2 x 10W RMS Accessories Included accessories AC Power Cord RS232 cable Remote Control Batteries for remote control User manual on CD-ROM Quick start guide Optional accessories Table top stand Multimedia Applications USB Playback Video M2TS M4V MK3D MKV MP4 MPEG MPG MTS TS TTS VOB WMV USB Playback Picture BMP GIF JPEG JPG USB Playback Audio AAC AIF AIFF ASF M4A LPCM M3U MP3 MP4 WAV WMA Miscellaneous Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (inch)

65 inch

Diagonal screen size (metric)

163.9 cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350 cd/m²

Contrast ratio (typical)

3000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

8 ms

Aspect ratio

16:9

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Pixel pitch

0.74 x 0.74 mm

Display colors

1.07 Billion

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
- 3D MA deinterlacing
- Dynamic contrast enhancement
Panel technology

VA
Supported Display Resolution
Computer formats
- 640 x 480, 60, 67, 72, 75Hz
- 1024 x 768, 60Hz
- 1280 x 768, 60Hz
- 1280 x 800, 60Hz
- 1360 x 768, 60Hz
- 1600 x 1200, 60Hz
- 1920 x 1080, 60Hz
- 1920 x 1200, 60Hz
- 1280 x 1024, 60Hz
- 720 x 400, 70Hz
- 800 x 600, 60, 72, 75Hz
Video formats
- 480p, 60Hz
- 576p, 50Hz
- 720p, 50, 60Hz
- 1080p, 50, 60Hz
- 1080i, 25, 30Hz
- 480i, 30, 60Hz
- 576i, 25, 50Hz
Connectivity
Video input
- DVI-D
- VGA (Analog D-Sub)
- USB
- Component (BNC)
- Composite (BNC)
- DisplayPort (1.2)
- HDMI (x2)
Audio input
- 3.5 mm jack
- Audio Left/Right (RCA)
Audio output
- Audio Left/Right (RCA)
- External speaker connector
External control
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
- RJ45
Video output
- DisplayPort
- DVI-I
- VGA (via DVI-D)
Other connections
- OPS
- USB
Convenience
Screen saving functions

Pixel Shift, Low Brightness

Keyboard control
- Hidden
- Lockable
Network controllable
- LAN (RJ45)
- RS232
- One Wire (HDMI-CEC)
Signal Loop Through
- DisplayPort
- DVI
- VGA
- RS232
Ease of installation

Smart Insert

Energy saving functions

Smart Power

Placement

Landscape

Remote control signal

Lockable

Tiled Matrix

Up to 10 x 15
Dimensions

Bezel width

13.9 (Top/Left/Right) 14.9 (Bottom) mm

Set Width

1458.7 mm

Set Height

834.7 mm

Set Depth

81.6 mm

Set Width (inch)

57.43 inch

Set Height (inch)

32.86 inch

Set Depth (inch)

3.21 inch

Product weight

24.8 kg

Product weight (lb)

54.7 lb

VESA Mount

400 x 400 mm, M6

Smart Insert mount

100 x 100 mm, 100 x 200 mm
Operating conditions

Altitude

0 ~ 3000 m

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 ~ 80 %

MTBF

50,000 hour(s)
Power

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (On mode)

176 W

Standby power consumption

<0.5W

Power Saving Features

Smart Power
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- AC Power Cord
- RS232 cable
- Remote Control
- Batteries for remote control
- User manual on CD-ROM
- Quick start guide
Optional accessories

Table top stand
Multimedia Applications
USB Playback Video
- M2TS
- M4V
- MK3D
- MKV
- MP4
- MPEG
- MPG
- MTS
- TS
- TTS
- VOB
- WMV
USB Playback Picture
- BMP
- GIF
- JPEG
- JPG
USB Playback Audio
- AAC
- AIF
- AIFF
- ASF
- M4A
- LPCM
- M3U
- MP3
- MP4
- WAV
- WMA
Miscellaneous

Warranty

3 year warranty
