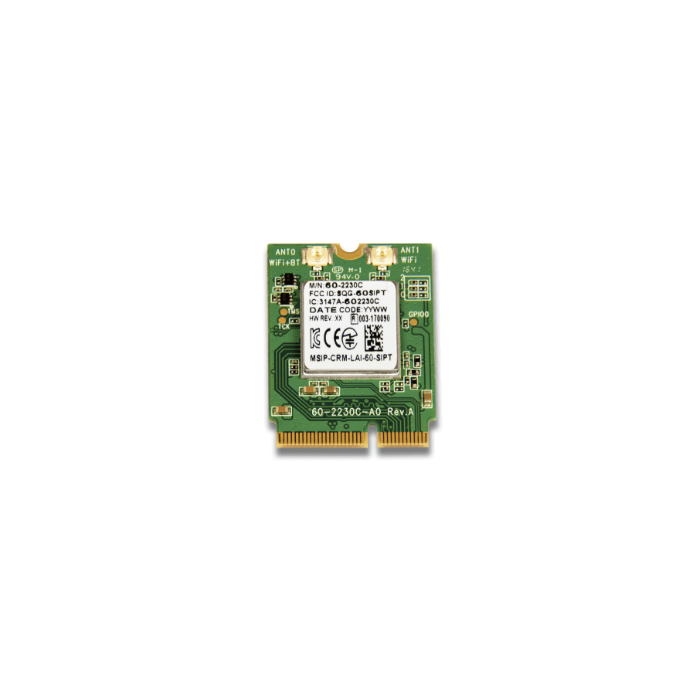

60-2230C Series Bluetooth and WiFi Module

In stock
SKU:
60-2230C Series Bluetooth and WiFi Module
Brand: Laird Connectivity

Advanced 802.11ac Wave 2, 2x2 MU-MIMO, Advanced Power Save, Optimized Internal BT/Wi-Fi Coexistence, Fast Roam


Enquire Now
Enquire about this product
We build to order
Antenna Options
2x U. FL
Chipset (Wireless)
Marvell 88W8997
Compliance
Certifications and approvals for FCC (USA), IC (Canada), ETSI (Europe), KCC (Korea), Giteki (Japan), RCM (AUS/NZ)
Connector Type
M.2 Connector (2230 E-Key)
Data Rate
1,2,3 Mbps
Encryption
WEP, TKIP, AES
Frequency
2.4 GHz to 2.495, 5.15 GHz to 5.825 GHz (including DFS)
Frequency Range
2400 - 5825
Operating Humidity
10 to 90% humidity (non-condensing)
Operating Systems Supported
Android / Linux
Operating Temp (°C)
-30 °C - 85 °C
Protocols
Wi-Fi Media Access Protocol
Security
WEP, WPA, WPA2
Spatial Streams
2 (2x2-MIMO)
Wireless Specification
802.11ac Wi-Fi + Bluetooth 5.1
