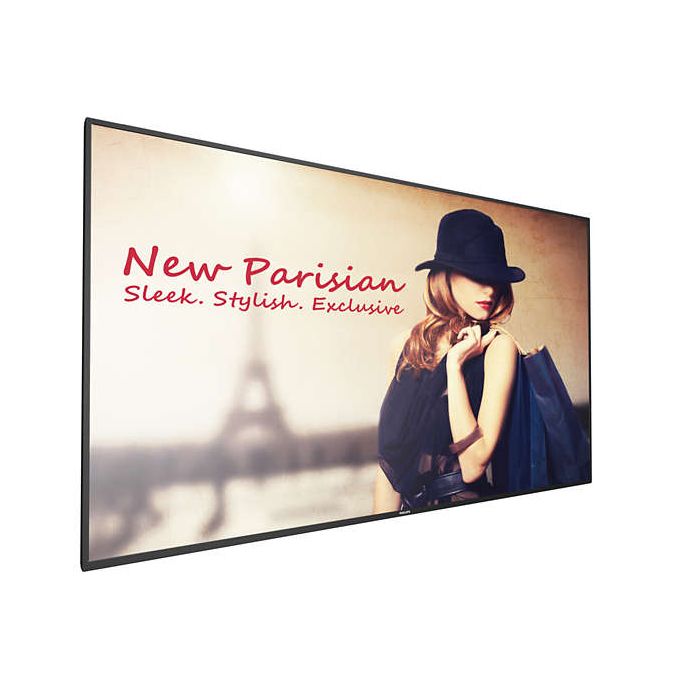

55BDL4050D - 55" Full HD Android Display

End of Life
SKU: 55BDL4050D
Signage Size
55"

D-Line Display, 55" Powered by Android, 450cd/m²

Datasheet

Description

D-Line Display, 55" Powered by Android, 450cd/m²

·         Smart, powerful 24/7 display.

·         55"

·         Powered by Android

·         450cd/m²

Download

Product Data Sheet

More Information

Brand Philips
Specifications

  • Picture/Display

    Diagonal screen size (inch)
    54.64  inch
    Diagonal screen size (metric)
    138.8  cm
    Panel resolution
    1920x1080p
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    450  cd/m²
    Contrast ratio (typical)
    1100:1
    Dynamic contrast ratio
    500,000:1
    Aspect ratio
    16:9
    Response time (typical)
    12  ms
    Pixel pitch
    0.63 x 0.63 mm
    Display colors
    16.7 million
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Progressive scan
    Operating system
    Android 4.4.4

  • Connectivity

    Video input
    • DisplayPort (1.2)
    • HDMI (x2)
    • DVI-D
    • USB
    • VGA (via DVI)
    Video output
    • DisplayPort
    • DVI-I
    • VGA (via DVI-D)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Audio output
    • Audio Left/Right (RCA)
    • Ext. speaker cntrl (aud. out)
    Other connections
    • mPCIe
    • micro SD
    • micro USB
    • USB power outlet (5 V. 2 amp)
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack

  • Supported Display Resolution

    Computer formats
    • 1920 x 1080, 60Hz
    • 1440 x 900, 60Hz
    • 1366 x 768, 60Hz
    • 1360 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 768, 60Hz
    • 1024 x 768, 60Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 640 x 480, 60, 67, 72, 75Hz
    Video formats
    • 1080p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 720p, 50, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 480p, 60Hz
    • 480i, 60Hz

  • Dimensions

    Set Width
    1231.9  mm
    Set Height
    711.2  mm
    Set Depth
    45.72  mm
    Set Width (inch)
    48.5  inch
    Set Height (inch)
    28.0  inch
    Set Depth (inch)
    1.8  inch
    Bezel width
    9.5 mm (T/L/R) 15.6mm (B)
    Product weight (lb)
    39.68  lb
    Product weight
    18.0  kg
    VESA Mount
    400 x 400 mm, M6

  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Hidden
    • Lockable
    Signal Loop Through
    • DVI
    • VGA
    • RS232
    • IR Loopthrough
    • DisplayPort
    Network controllable
    • RJ45
    • RS232
    • One Wire (HDMI-CEC)
    • HDMI (One Wire)
    Energy saving functions
    Smart Power
    Screen saving functions
    Pixel Shift, Low Bright

  • Power

    Standby power consumption
    <0.4 W
    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (EPA 6.0)
    64  W
    Consumption (Typical)
    76  W

  • Operating conditions

    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Relative humidity
    20 ~ 80  %
    Altitude
    0 ~ 3000 m
    MTBF
    50,000  hour(s)

  • Sound

    Built-in speakers
    2 x 10W RMS
