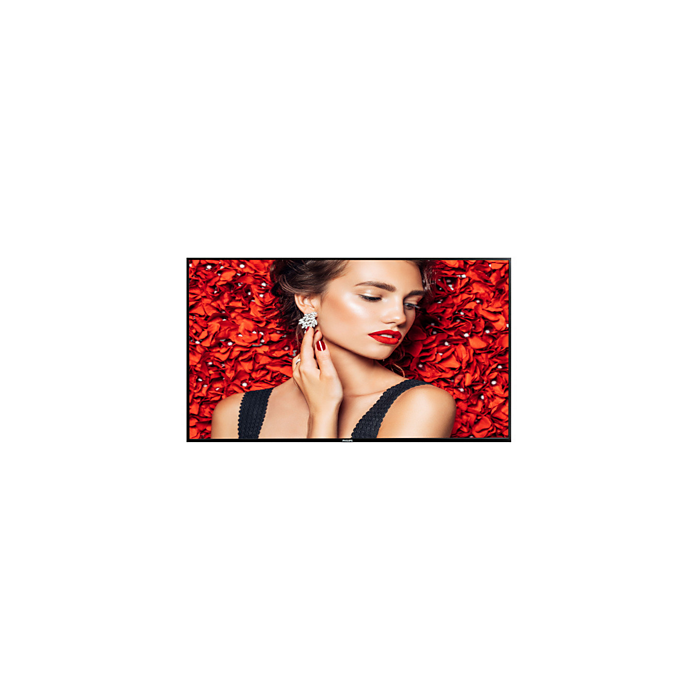

Shop 55BDL4031D - 55" Full HD Display at Tekdis LLC

End of Life

SKU: 55BDL4031D

Signage Size: 55"

D-Line Display 55" Edge-lit LED, Full HD, 450cd/m2

Description

55" Edge-lit LED, Full HD, 450cd/m2

55"
Edge-lit LED
Full HD
450cd/m2

More Information

Brand	Philips
Specifications	Diagonal screen size (inch) 54.6 inch Diagonal screen size (metric) 139 cm Panel resolution 1920x1080p Optimum resolution 1920 x 1080 @ 60 Hz Brightness 450 cd/m² Contrast ratio (typical) 1100:1 Dynamic contrast ratio 500,000:1 Aspect ratio 16:9 Response time (typical) 12 ms Pixel pitch 0.630 x 0.630 mm Display colors 16.7 Million Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing Progressive scan 3D MA deinterlacing Panel technology IPS Placement Landscape (24/7) Portrait (24/7) Connectivity Video input Display Port1.2x1 DVI-I x 1 HDMI (x2) Video output DisplayPort1.2x1 DVI-I x1 Audio input 3.5 mm jack Audio output 3.5mm jack External control RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack Supported Display Resolution Computer formats 1920 x 1200, 60Hz 1920 x 1080, 60Hz 1600 x 1200, 60Hz 1440 x 900, 60Hz 1366 x 768, 60Hz 1360 x 768, 60Hz 1280 x 800, 60Hz 1280 x 768, 60Hz 1024 x 768, 60Hz 800 x 600, 56, 60, 72, 75Hz 640 x 480, 60, 67, 72, 75Hz Video formats 1080p, 50, 60Hz 1080i, 50, 60Hz 720p, 50, 60Hz 576i, 50Hz 576p, 50Hz 480p, 60Hz 480i, 60Hz Dimensions Set Width (inch) 48.56 inch Set Height (inch) 27.96 inch Set Depth (inch) 1.79 inch Set Width 1233.4 mm Set Height 710.3 mm Set Depth 45.5 mm Bezel width 9.6 mm (T/L/R), 15.7 mm (B) Product weight (lb) 39.68 lb Product weight 18.0 kg VESA Mount 400 x 400 mm, M6 Convenience Tiled Matrix Up to 15 x 15 Keyboard control Hidden Lockable Signal Loop Through IR Loopthrough DVI Network controllable RJ45 RS232 Screen saving functions Pixel Shift Picture in picture PIP Power Consumption (On mode) 150W( max) Standby power consumption <0.5 W Mains power AC (100 ~ 240 V) , 2.5A Consumption (Typical) 85 W Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -10 ~ 50 °C Altitude 0 ~ 3000 m MTBF 50,000 hour(s) Humidity range (operation)[RH] 10 ~ 90% (without condensation) Humidity range (storage) [RH] 0 ~ 100% (without condensation) Sound Built-in speakers 2 x 10 W RMS Accessories Included accessories Remote Control Batteries for remote control AC Power Cord Quick start guide RS232 cable Included Accessories Edge Alignment Kit (1 )-2pcs Edge Alignment Kit (2)-1pcs M3 screw x 1 RS232 daisy-chain cable SD card cover x 1 Thumb Screw x8 Stand BM05922 (Universal Stand-L)(Option) Miscellaneous On-Screen Display Languages English French German Italian Polish Turkish Russian Spanish Simplified Chinese Traditional Chinese Arabic Japanese Regulatory approvals CE BSMI CB EAC EnergyStar 7.0 FCC, Class A PSB UL/cUL Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (inch)

54.6 inch

Diagonal screen size (metric)

139 cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

450 cd/m²

Contrast ratio (typical)

1100:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

12 ms

Pixel pitch

0.630 x 0.630 mm

Display colors

16.7 Million

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
- 3D MA deinterlacing
Panel technology

IPS

Placement
- Landscape (24/7)
- Portrait (24/7)
Connectivity
Video input
- Display Port1.2x1
- DVI-I x 1
- HDMI (x2)
Video output
- DisplayPort1.2x1
- DVI-I x1
Audio input

3.5 mm jack

Audio output

3.5mm jack

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 1920 x 1200, 60Hz
- 1920 x 1080, 60Hz
- 1600 x 1200, 60Hz
- 1440 x 900, 60Hz
- 1366 x 768, 60Hz
- 1360 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60Hz
- 800 x 600, 56, 60, 72, 75Hz
- 640 x 480, 60, 67, 72, 75Hz
Video formats
- 1080p, 50, 60Hz
- 1080i, 50, 60Hz
- 720p, 50, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 480p, 60Hz
- 480i, 60Hz
Dimensions

Set Width (inch)

48.56 inch

Set Height (inch)

27.96 inch

Set Depth (inch)

1.79 inch

Set Width

1233.4 mm

Set Height

710.3 mm

Set Depth

45.5 mm

Bezel width

9.6 mm (T/L/R), 15.7 mm (B)

Product weight (lb)

39.68 lb

Product weight

18.0 kg

VESA Mount

400 x 400 mm, M6
Convenience
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal Loop Through
- IR Loopthrough
- DVI
Network controllable
- RJ45
- RS232
Screen saving functions

Pixel Shift

Picture in picture

PIP
Power

Consumption (On mode)

150W( max)

Standby power consumption

<0.5 W

Mains power

AC (100 ~ 240 V) , 2.5A

Consumption (Typical)

85 W
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-10 ~ 50 °C

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)

Humidity range (operation)[RH]

10 ~ 90% (without condensation)

Humidity range (storage) [RH]

0 ~ 100% (without condensation)
Sound

Built-in speakers

2 x 10 W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- AC Power Cord
- Quick start guide
- RS232 cable
Included Accessories
- Edge Alignment Kit (1 )-2pcs
- Edge Alignment Kit (2)-1pcs
- M3 screw x 1
- RS232 daisy-chain cable
- SD card cover x 1
- Thumb Screw x8
Stand

BM05922 (Universal Stand-L)(Option)
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Italian
- Polish
- Turkish
- Russian
- Spanish
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
Regulatory approvals
- CE
- BSMI
- CB
- EAC
- EnergyStar 7.0
- FCC, Class A
- PSB
- UL/cUL
Warranty

3 year warranty
