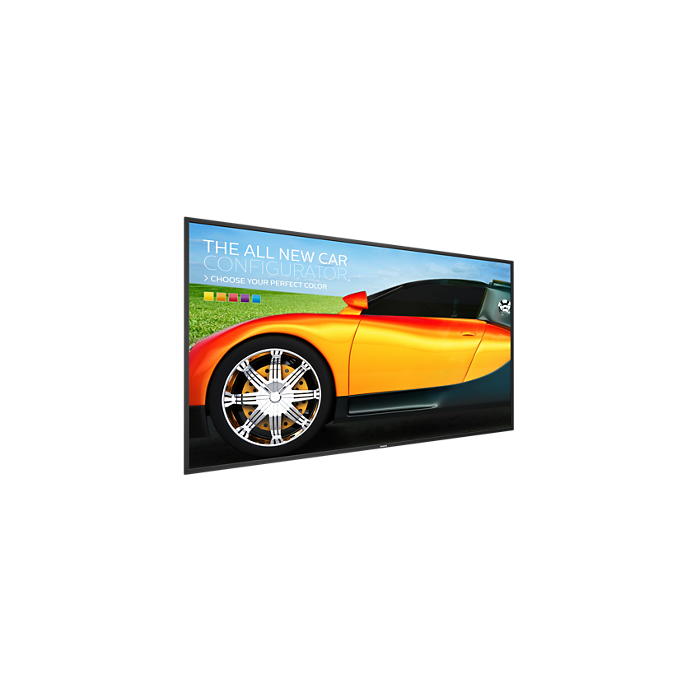

55BDL3050Q - 55" 16/7 4k UHD

Connectivity

Video input

• DVI-D
• HDMI (x2)
• VGA (Analog D-Sub)
• USB 2.0 (Type A) (x2)

Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control

• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack
• RJ45

Convenience

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

Lockable

Network controllable

• LAN (RJ45)
• RS232

Energy saving functions

Smart Power

Placement

• Landscape (18/7)
• Portrait (12/7)

Remote control signal

Lockable

Ease of installation

Remote Control Lock

Memory

8GB eMMC

Other convenience

• Kensington lock
• VESA mount (400x400mm)

Signal Loop Through

• IR Loopthrough
• RS232

Tiled Matrix

Up to 10 x 15

Dimensions

Bezel width

12.9 mm (T/L/R), 14.7 mm (B)

Set Width

1239.2  mm

Set Height

711.6  mm

Set Depth

61.7  mm

Set Width (inch)

48.79  inch

Set Height (inch)

28.02  inch

Set Depth (inch)

2.43  inch

Product weight

15.96  kg

Product weight (lb)

35.19  lb

VESA Mount

400 x 400 mm, 200 x 400 mm, M6 x 8

Operating conditions

Altitude

0 ~ 3000 m

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80 (operation),10 - 90%(storage)  %

MTBF

50,000  hour(s)

Power

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (On mode)

145 W

Standby power consumption

<0.5W

Power Saving Features

Smart Power

Consumption (Typical)

150  W

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Quick start guide
• Batteries for remote control
• Remote Control
• IR sensor cable (1.8M)

Optional accessories

Table top stand

Included Accessories

• RS232 daisy-chain cable
• USB Cover and screw x1

Stand

BM05923/BM02542/BM05922

Multimedia Applications

USB Playback Video

• ASF
• AVI
• FLV
• MKV
• MP4
• MPEG
• MPG
• TS
• VOB
• WEBM
• WMV
• DAT

USB Playback Picture

• BMP
• JPEG
• JPG
• PNG

USB Playback Audio

• AAC
• M4A
• MP3
• WMA

Miscellaneous

Warranty

3 year warranty
