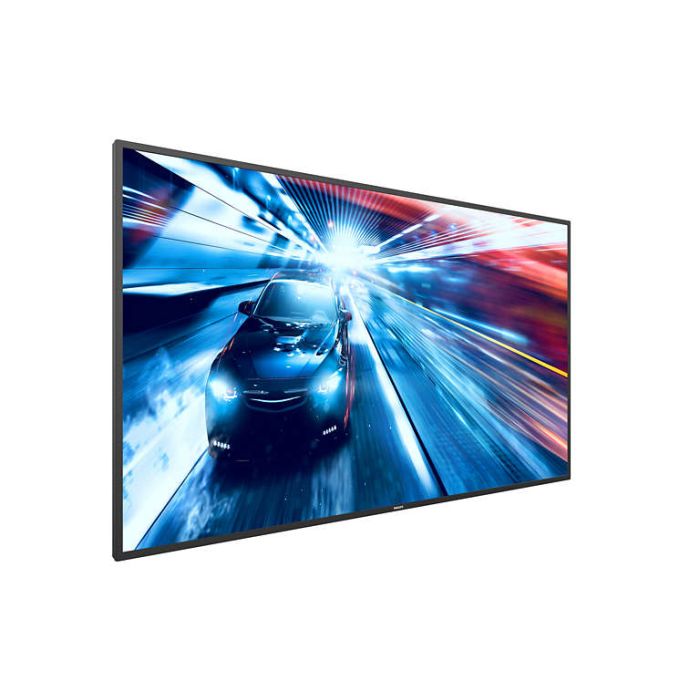

55BDL3010Q - 55" 16/7 UHD

Connectivity

Video input

• DVI-I x 1
• HDMI (x4)
• USB
• VGA (via DVI)

Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Convenience

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Switch on delay
• Switch on status
• Boot on source

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45

Signal Loop Through

• RS232
• IR Loopthrough

Dimensions

Bezel width

12.9 (TLR) / 14.7 (B) mm

Set Width

1239.2  mm

Set Height

711.6  mm

Set Depth

61.71  mm

Set Width (inch)

48.79  inch

Set Height (inch)

28.02  inch

Set Depth (inch)

2.43  inch

VESA Mount

400 x 400 mm/200 x 200 mm, M6

Product weight

15.82  kg

Product weight (lb)

34.88  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

MTBF

50,000  hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Altitude

0 ~ 3000 m

Power

Consumption (On mode)

125 W

Mains power

100 ~ 240 VAC

Standby power consumption

<0.5 W

comsumption(Max)

180 W

Consumption (Typical)

140  W

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• MPEG
• H.264
• JPEG

USB Playback Picture

• JPEG
• BMP
• PNG

USB Playback Audio

• AAC
• HEAAC
• MPEG
• WMA

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• Quick start guide

Included Accessories

• USB Cover and screw x1
• IR sensor cable (1.8 m)
• RS232 daisy-chain cable

Stand

Table stand (BM02542, BM05922)

Miscellaneous

Warranty

3 year warranty
