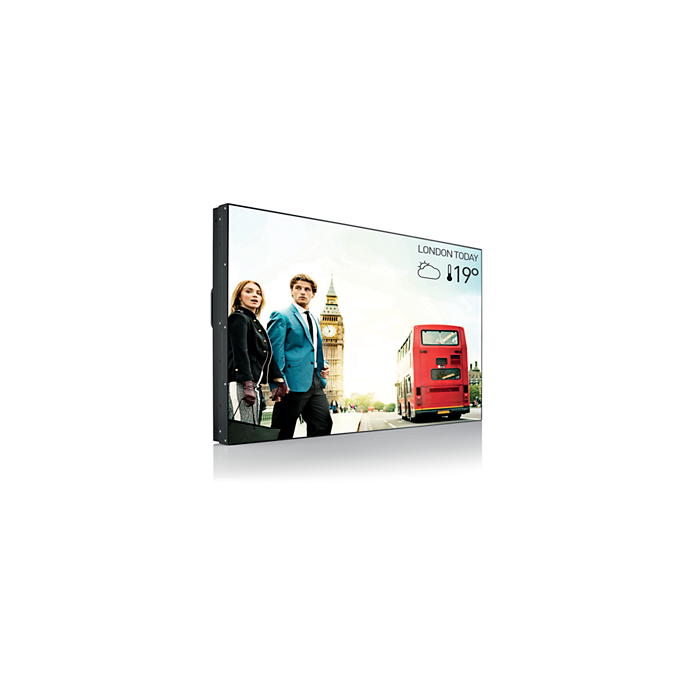

55BDL1005X - 55" Full HD Video Wall Display

End of Life

SKU: 55BDL1005X

Signage Size: 55"

Video Wall Display 55" Direct LED Backlight, Full HD, 500cd/m2

Datasheet

Description

55" Direct LED Backlight, Full HD, 500cd/m2

55"
Direcrt LED Backlight
Full HD
500cd/m2

Download

Datasheet

More Information

Brand	Philips
Specifications	Diagonal screen size (metric) 138.7 cm Diagonal screen size (inch) 54.6 inch Panel resolution 1920x1080p Optimum resolution 1920 x 1080 @ 60 Hz Brightness 500 cd/m² Contrast ratio (typical) 1400:1 Dynamic contrast ratio 500,000:1 Response time (typical) 8 ms Aspect ratio 16:9 Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Pixel pitch 0.63 x 0.63 mm Display colors 1.07 B Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing Progressive scan 3D MA deinterlacing Dynamic contrast enhancement Supported Display Resolution Computer formats 640 x 480, 60, 67, 72, 75Hz 800 x 600, 56, 60, 72, 75Hz 1024 x 768, 60Hz 1280 x 768, 60Hz 1280 x 800, 60Hz 1280 x 1024, 60Hz 1360 x 768, 60Hz 1366 x 768, 60Hz 1440 x 900, 60Hz 1600 x 1200, 60Hz 1920 x 1080, 60Hz 1920 x 1200, 60Hz Video formats 480i, 60Hz 480p, 60Hz 576p, 50Hz 576i, 50Hz 720p, 50, 60Hz 1080i, 50, 60Hz 1080p, 50, 60Hz 3840 x 2160, 30Hz Connectivity Video input Component (RCA) Composite (RCA) DVI-D HDMI (x2) VGA (Analog D-Sub) DisplayPort (1.2) Video output DisplayPort DVI-I VGA (via DVI-I) Audio input 3.5 mm jack Audio Left/Right (RCA) Audio output Audio Left/Right (RCA) External speaker connector External control IR (in/out) 3.5 mm jack RJ45 RS232C (in/out) 2.5 mm jack Other connections OPS Convenience Signal Loop Through RS232 VGA DisplayPort DVI IR Loopthrough Ease of installation Carrying Handles Smart Insert Energy saving functions Ambient light sensor Smart Power Network controllable RS232 RJ45 Card OPS RS232 One Wire (HDMI-CEC) Placement Landscape (24/7) Portrait (24/7) Screen saving functions Pixel Shift, Low Bright Tiled Matrix Up to 10 x 10 Control software SICP / CMND&Control RJ45 hub 2 ports Dimensions Bezel thickness 1.8 mm (A-A) Bezel width 0.9mm (Even Bezel) Set Width 1211.4 mm Set Height 682.2 mm Set Depth 98.5 mm Set Width (inch) 47.69 inch Set Height (inch) 26.86 inch Set Depth (inch) 3.88 inch Product weight 24.35 kg VESA Mount 400 x 400 mm Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Altitude 0 ~ 3000 m Relative humidity 20 ~ 80 % MTBF 50,000 hour(s) Power Consumption (On mode) 133W Standby power consumption <0.5W Sound Built-in speakers 2 x 10W (RMS) Accessories Included accessories Remote Control Batteries for remote control AC Power Cord RS232 cable Quick start guide Edge alignment pins Edge alignment plates Optional accessories Edge finishing kit HDBaseT OPS Receiver (CRD25) Color calibration kit Miscellaneous On-Screen Display Languages Arabic Simplified Chinese Traditional Chinese English French German Italian Japanese Polish Russian Spanish Turkish Regulatory approvals CE FCC, Class B UL/cUL CB GOST EPEAT Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (metric)

138.7 cm

Diagonal screen size (inch)

54.6 inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

500 cd/m²

Contrast ratio (typical)

1400:1

Dynamic contrast ratio

500,000:1

Response time (typical)

8 ms

Aspect ratio

16:9

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Pixel pitch

0.63 x 0.63 mm

Display colors

1.07 B

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
- 3D MA deinterlacing
- Dynamic contrast enhancement
Supported Display Resolution
Computer formats
- 640 x 480, 60, 67, 72, 75Hz
- 800 x 600, 56, 60, 72, 75Hz
- 1024 x 768, 60Hz
- 1280 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 1024, 60Hz
- 1360 x 768, 60Hz
- 1366 x 768, 60Hz
- 1440 x 900, 60Hz
- 1600 x 1200, 60Hz
- 1920 x 1080, 60Hz
- 1920 x 1200, 60Hz
Video formats
- 480i, 60Hz
- 480p, 60Hz
- 576p, 50Hz
- 576i, 50Hz
- 720p, 50, 60Hz
- 1080i, 50, 60Hz
- 1080p, 50, 60Hz
- 3840 x 2160, 30Hz
Connectivity
Video input
- Component (RCA)
- Composite (RCA)
- DVI-D
- HDMI (x2)
- VGA (Analog D-Sub)
- DisplayPort (1.2)
Video output
- DisplayPort
- DVI-I
- VGA (via DVI-I)
Audio input
- 3.5 mm jack
- Audio Left/Right (RCA)
Audio output
- Audio Left/Right (RCA)
- External speaker connector
External control
- IR (in/out) 3.5 mm jack
- RJ45
- RS232C (in/out) 2.5 mm jack
Other connections

OPS
Convenience
Signal Loop Through
- RS232
- VGA
- DisplayPort
- DVI
- IR Loopthrough
Ease of installation
- Carrying Handles
- Smart Insert
Energy saving functions
- Ambient light sensor
- Smart Power
Network controllable
- RS232
- RJ45
- Card OPS RS232
- One Wire (HDMI-CEC)
Placement
- Landscape (24/7)
- Portrait (24/7)
Screen saving functions

Pixel Shift, Low Bright

Tiled Matrix

Up to 10 x 10

Control software

SICP / CMND&Control

RJ45 hub

2 ports
Dimensions

Bezel thickness

1.8 mm (A-A)

Bezel width

0.9mm (Even Bezel)

Set Width

1211.4 mm

Set Height

682.2 mm

Set Depth

98.5 mm

Set Width (inch)

47.69 inch

Set Height (inch)

26.86 inch

Set Depth (inch)

3.88 inch

Product weight

24.35 kg

VESA Mount

400 x 400 mm
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Altitude

0 ~ 3000 m

Relative humidity

20 ~ 80 %

MTBF

50,000 hour(s)
Power

Consumption (On mode)

133W

Standby power consumption

<0.5W
Sound

Built-in speakers

2 x 10W (RMS)
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- AC Power Cord
- RS232 cable
- Quick start guide
- Edge alignment pins
- Edge alignment plates
Optional accessories
- Edge finishing kit
- HDBaseT OPS Receiver (CRD25)
- Color calibration kit
Miscellaneous
On-Screen Display Languages
- Arabic
- Simplified Chinese
- Traditional Chinese
- English
- French
- German
- Italian
- Japanese
- Polish
- Russian
- Spanish
- Turkish
Regulatory approvals
- CE
- FCC, Class B
- UL/cUL
- CB
- GOST
- EPEAT
Warranty

3 year warranty
