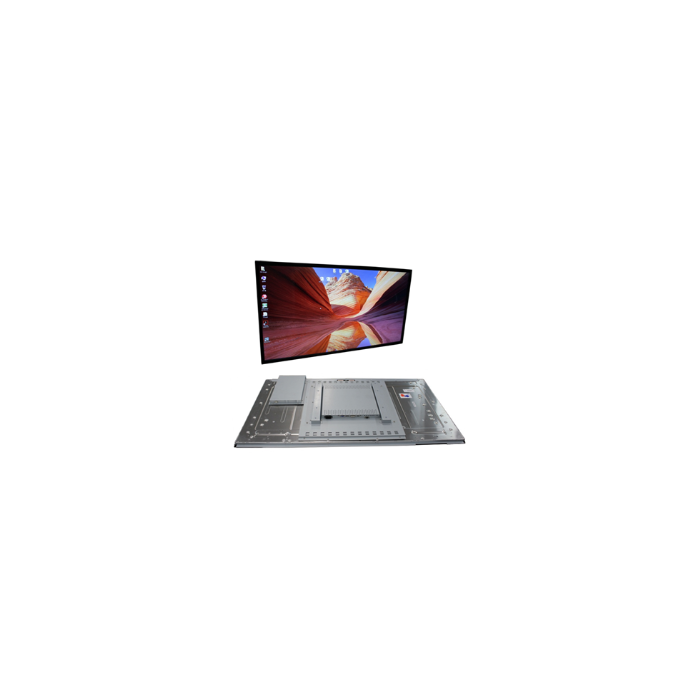

55" open frame display

SKU: GEOA550SE-SF02-GT
Signage Size
51" to 75"

55" open frame display, 700 cd/m2 brightness

Datasheet

Description

Designed for demanding environments, the Estecom 55.0” Touch Open Frame
series delivers a long life cycle and high performance of touch experience to a wide
range of commercial and industrial applications.
The Estecom Touch Open Frame family series will lead you to dynamic digital world
with instrument “drop-in” designs.

Download

Datasheet

More Information

Specifications
  • Estecom Controller Board : ORCHID-D
  • 1920 x 1080 / 16:9
  • Contrast Ratio 4000 : 1
  • Brightness : 700cd/㎡ (typ.)
  • Viewing Angle : 89/89/89/89 (L/R/U/D)
  • Luminance Uniformity : 70% (typ.)
  • Touch Screen : P-CAP
    - Option : Shadow Sense / IR / SAW / 4, 5 & 8 wire Resistive
    - Window 8 Plug & Play Touch Controller, USB
  • Robust CNC milled enclosure by ventilation structure
  • +12VDC ~ +24VDC Single Power Input
  • Flexible PIP/PBP and POP support capability (Video, Graphics)
    between any 2 Input ports
  • Operating temperature: 0°C to 50°C
  • Resolution support : up to WUXGA @ 60Hz/1080i
  • Input : VGA, DVI, HDMI, DP
  • Audio In/Out, Speaker Out
  • VESA DPMS Power saving mode
  • Operating temperature: -20°C to 70°C
  • 6 buttons OSD Board (SGML0001200)
    Menu / Down (Auto Config.) / Decrease / Increase / Source/Exit
  • Customization available by request
