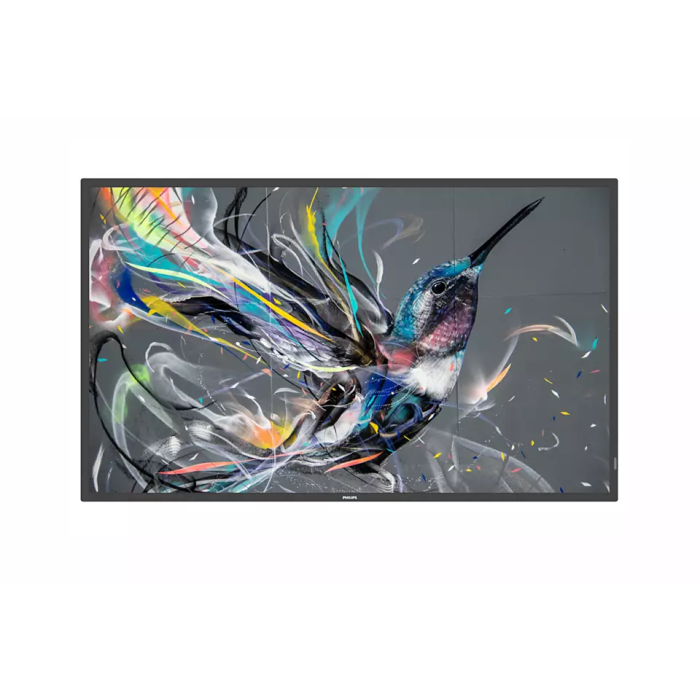

Shop 50BDL3550Q 50" UHD Android Display at Tekdis LLC

End of Life

SKU: 50BDL3550Q

Signage Size: 50"

Easy-setup 18/7 display. Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need with no additional hardware.

Key Features:

Direct LED Backlight
Integrated media player. Easily schedule USB content
Remotely manage networked displays
FailOver ensures content is always playing
Android 8.0 SoC processor. Native and web apps
Ultra-HD
400 cd/m²

Datasheet

Description

Easy-setup 18/7 display. Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need with no additional hardware.

Key Features:

Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- CMND & Create. Develop and launch your own content
Cost-effective system solution
- Integrated media player. Easily schedule USB content
- Easy control. Remotely manage networked displays
- FailOver ensures content is always playing
Smart and powerful
- Android SoC processor. Native and web apps
- Connect and control your content via the cloud
Superb picture. Ultra-high brightness.
- Ultra-HD. Rich images. Stunning contrast

Download

Datasheet

More Information

Brand	Philips
Specifications	Picture/Display • Diagonal screen size: 49.5 inch / 125.7 cm • Panel resolution: 3840 x 2160 • Optimum resolution: 3840 x 2160 @ 60 Hz • Brightness: 400 cd/m² • Contrast ratio (typical): 4000:1 • Dynamic contrast ratio: 500,000:1 • Response time (typical): 8 ms • Aspect ratio: 16:9 • Viewing angle (H / V): 178 / 178 degree • Pixel pitch: 0.2854 x 0.2854 mm • Display colours: 1.07 Billion • Panel technology: VA • Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan • Clinical image: D-Image preset (dicom part 14 compatible) • Operating system: Android 8.0 Supported Display Resolution • Computer formats Resolution Refresh rate 1920 x 1080 60Hz 1680 x 1050 60Hz 1600 x 1200 60Hz 1440 x 900 60Hz 1280 x 1024 60Hz 1280 x 800 60Hz 1280 x 720 60Hz 1152 x 870 75Hz 1024 x 768 60, 70, 75Hz 800 x 600 56, 60, 72, 75Hz 720 x 400 70Hz 640 x 480 60, 67, 72, 75Hz 1152 x 864 75Hz 832 x 624 75Hz • Video formats Resolution Refresh rate 3840 x 2160 60Hz 3840 x 2160 30Hz 576p 50Hz 576i 50Hz 480p 60Hz 480i 60Hz 1080p 50, 60Hz 1080i 50, 60Hz 720p 50,60 Hz Connectivity • Video input: DVI-D (x1), HDMI 2.0 (x2), USB 2.0 (x2), VGA (Analog D-Sub) (x1) • Audio input: 3.5 mm jack • Audio output: 3.5mm jack • External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack Convenience • Energy saving functions: Smart Power • Tiled Matrix: Up to 15 x 15 • Start-up: Switch on delay, Switch on status, Boot on source • Start-up window: enable / disable Philips logo • Keyboard control: Lockable, Hidden • Network controllable: RS232, RJ45 • Signal loop through: RS232, IR Loopthrough • Placement: Landscape (18/7), Portrait (18/7) • Remote control signal: Lockable Dimensions • Bezel width: 14.9 mm (Even bezel) • Set dimensions (W x H x D): 1128.4 x 649.0 x 63.5 mm • Set dimensions in inch (W x H x D): 44.43 x 25.55 x 2.50 inch • Wall Mount: 400mm x 400mm , M6 • Product weight: 14.75 kg • Product weight (lb): 32.52 lb Operating conditions • Temperature range (operation): 5 ~ 40 °C • Temperature range (storage): -20 ~ 60 °C • MTBF: 50,000 hour(s) • Altitude: 0 ~ 3000 m • Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation) • Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation) Power • Mains power: 100 - 240V~, 50/60Hz • Standby power consumption: <0.5W • Consumption (Max): 145 • Consumption (Typical): 115 W • Power Saving Features: Smart Power • Energy Label Class: G Sound • Built-in speakers: 2 x 10W RMS Multimedia Applications • USB Playback Video: MPEG, H.264, H.263, H.265 • USB Playback Picture: JPEG, BMP, PNG • USB Playback Audio: AAC, HEAAC, MPEG Accessories • Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide • Included Accessories: IR sensor cable (1.8 m) (x1), RS232 daisy-chain cable, Philips logo (x1), USB Cover and screw (x2) • Stand: BM05922(optional) Miscellaneous • Warranty: 3-year warranty • On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese • Regulatory approvals: CE, CB, BSMI, CU, EPA, ETL, FCC, Class A, VCCI, J-Moss Internal Player • CPU: Dual core cortex A53 1.1G Hz, Dual core cortex A73 1.15G Hz • GPU: ARM Mali G51 • Memory: 2GB DDR3, 8GB

Brand

Philips

Specifications

Picture/Display

• Diagonal screen size: 49.5 inch / 125.7 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m²
• Contrast ratio (typical): 4000:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.2854 x 0.2854 mm
• Display colours: 1.07 Billion
• Panel technology: VA
• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan
• Clinical image: D-Image preset (dicom part 14
compatible)
• Operating system: Android 8.0

Supported Display Resolution

• Computer formats
Resolution Refresh rate
1920 x 1080 60Hz
1680 x 1050 60Hz
1600 x 1200 60Hz
1440 x 900 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 720 60Hz
1152 x 870 75Hz
1024 x 768 60, 70, 75Hz
800 x 600 56, 60, 72, 75Hz
720 x 400 70Hz
640 x 480 60, 67, 72, 75Hz
1152 x 864 75Hz
832 x 624 75Hz
• Video formats

Resolution Refresh rate

3840 x 2160 60Hz
3840 x 2160 30Hz
576p 50Hz
576i 50Hz
480p 60Hz
480i 60Hz
1080p 50, 60Hz
1080i 50, 60Hz
720p 50,60 Hz

Connectivity

• Video input: DVI-D (x1), HDMI 2.0 (x2), USB 2.0 (x2), VGA (Analog D-Sub) (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack Convenience
• Energy saving functions: Smart Power
• Tiled Matrix: Up to 15 x 15
• Start-up: Switch on delay, Switch on status, Boot on source
• Start-up window: enable / disable Philips logo
• Keyboard control: Lockable, Hidden
• Network controllable: RS232, RJ45
• Signal loop through: RS232, IR Loopthrough
• Placement: Landscape (18/7), Portrait (18/7)
• Remote control signal: Lockable

Dimensions

• Bezel width: 14.9 mm (Even bezel)
• Set dimensions (W x H x D): 1128.4 x 649.0 x 63.5 mm
• Set dimensions in inch (W x H x D): 44.43 x 25.55 x 2.50 inch
• Wall Mount: 400mm x 400mm , M6
• Product weight: 14.75 kg
• Product weight (lb): 32.52 lb

Operating conditions

• Temperature range (operation): 5 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• MTBF: 50,000 hour(s)
• Altitude: 0 ~ 3000 m
• Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)

Power

• Mains power: 100 - 240V~, 50/60Hz
• Standby power consumption: <0.5W
• Consumption (Max): 145
• Consumption (Typical): 115 W
• Power Saving Features: Smart Power
• Energy Label Class: G

Sound

• Built-in speakers: 2 x 10W RMS

Multimedia Applications

• USB Playback Video: MPEG, H.264, H.263, H.265
• USB Playback Picture: JPEG, BMP, PNG
• USB Playback Audio: AAC, HEAAC, MPEG

Accessories

• Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide
• Included Accessories: IR sensor cable (1.8 m) (x1), RS232 daisy-chain cable, Philips logo (x1), USB Cover and screw (x2)
• Stand: BM05922(optional)

Miscellaneous

• Warranty: 3-year warranty
• On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
• Regulatory approvals: CE, CB, BSMI, CU, EPA, ETL, FCC, Class A, VCCI, J-Moss

Internal Player

• CPU: Dual core cortex A53 1.1G Hz, Dual core
cortex A73 1.15G Hz
• GPU: ARM Mali G51
• Memory: 2GB DDR3, 8GB
