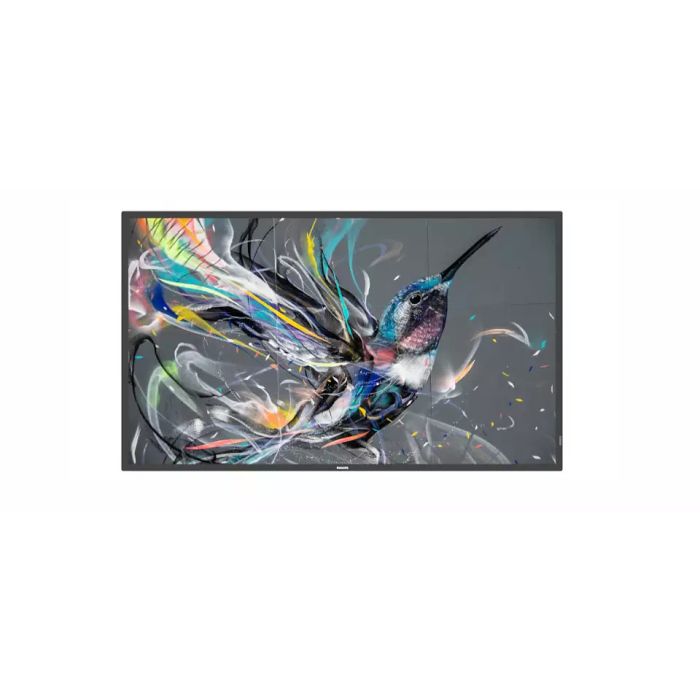

50BDL3511Q UHD 18/7 Display
50BDL3511Q 50" UHD Easy-Setup 18/7 SmartPlayer CMND & Control Failover
Key Features:
- Schedule what you want, when you want with SmartPlayer
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- FailOver ensures content is always playing
- Easy control. Remotely manage networked displays
The 50BDL3511Q is a 50 inch UHD easy-setup 18/7 display with included SmartPlayer to allow for schedulded content management all from a single USB device. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control.
Key Features:
- Schedule what you want, when you want with SmartPlayer
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- FailOver ensures content is always playing
- Easy control. Remotely manage networked displays
|
Picture/Display |
|
|
Diagonal screen size |
49.5 inch / 125.7 cm |
|
Panel resolution |
3840x2160 |
|
Optimum resolution |
3840x2160 @ 60 Hz |
|
Brightness |
400 cd/m² |
|
Dynamic contrast ratio |
500,000:1 |
|
Response time (typical) |
8 ms |
|
Aspect ratio |
16:9 |
|
Viewing angle (H / V) |
178 / 178 degree |
|
Pixel pitch |
0.2854 x 0.2854 mm |
|
Display colors |
1.07 Billion |
|
Panel technology |
VA |
|
Contrast ratio (typical) |
4000:1 |
|
Clinical image |
D-Image preset (dicom part 14 compatible) |
|
Haze |
2% |
|
Supported Display Resolution (Computer Format) |
|
|
Resolution |
Refresh Rate |
|
640 x 480 |
60, 67, 72, 75Hz |
|
720 x 400 |
70Hz |
|
800 x 600 |
56, 60, 72, 75Hz |
|
832 x 624 |
75Hz |
|
1024 x 768 |
60, 70, 75Hz |
|
1152 x 864 |
75Hz |
|
1152 x 870 |
75Hz |
|
1280 x 720 |
60Hz |
|
1280 x 800 |
60Hz |
|
1280 x 1024 |
60Hz |
|
1440 x 900 |
60Hz |
|
1600 x 1200 |
60Hz |
|
1680 x 1050 |
60Hz |
|
1920 x 1080 |
60Hz |
|
Supported Display Resolution (Video Format) |
|
|
Resolution |
Refresh Rate |
|
480i |
60Hz |
|
480p |
60Hz |
|
576p |
50Hz |
|
576i |
50Hz |
|
720p |
60Hz |
|
1080i |
50, 60Hz |
|
1080p |
50, 60Hz |
|
3840 x 2160 |
30Hz |
| 3840 x 2160 | 60Hz |
|
Connectivity |
|
|
Video input |
DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2) |
|
Audio input |
3.5 mm jack |
|
Audio output |
3.5mm jack |
|
External control |
IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
|
Convenience |
|
|
Placement |
Landscape (18/7), Portrait (18/7) |
|
Tiled Matrix |
Up to 10 x 15 |
|
Signal loop through |
RS232, IR Loopthrough |
|
Energy saving functions |
Smart Power |
|
Network controllable |
RS232, RJ45 |
|
Keyboard control |
Hidden, Lockable |
|
Remote control signal |
Lockable |
|
Start-up |
Switch on delay, Switch on status, Boot on source |
|
Start-up window |
enable / disable Philips logo |
|
Operating Conditions |
|
|
Temperature range (operation) |
0 ~ 40 °C |
|
Temperature range (storage) |
-20 ~ 60 °C |
|
Altitude |
0 ~ 3000 m |
|
MTBF |
50,000 hour(s) |
|
Humidity range (operation)[RH] |
20 ~ 80% RH (No condensation) |
|
Humidity range (storage) [RH] |
5 ~ 95% RH (No condensation) |
|
Power |
|
|
Consumption (Typical) |
130 W |
|
Consumption (Max) |
175 W |
|
Standby power consumption |
<0.5W |
|
Mains power |
100 - 240V~, 50/60Hz |
|
Power Saving Features |
Smart Power |
|
Energy Label Class |
G |
|
Sound |
|
|
Built-in speakers |
2 x 10W RMS |
|
Accessories |
|
|
Stand |
BM05922(optional) |
|
Included Accessories |
IR sensor cable (1.8 m) (x1), |
|
Miscellaneous |
|
|
On-Screen Display Languages |
Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|
Regulatory approvals |
CE, FCC, Class A, CB, EMF, VCCI, PSB, CU, ETL |
|
Warranty |
3 year warranty |
|
Multimedia Applications |
|
|
USB Playback Video |
H.264, JPEG, MPEG, WMV3 |
|
USB Playback Picture |
BMP, JPEG, PNG |
|
USB Playback Audio |
AAC, WMA, MPEG, HEAAC |
|
Dimensions |
|
|
Set dimensions (W x H x D) |
1128.4 x 649.0 x 63.5 mm |
|
Set dimensions in inch (W x H x D) |
44.43 x 25.55 x 2.50 inch |
|
Bezel width |
14.9 mm (Even bezel) |
|
Wall Mount |
400mm x 400mm , M6 |
|
Product weight |
14.75 kg |
|
Product weight (lb) |
32.52 lb |
