Shop 43BDL3010Q 43" Full HD 16/7 Display at Tekdis LLC

End of Life

SKU: 43BDL3010Q

Signage Size: 43"

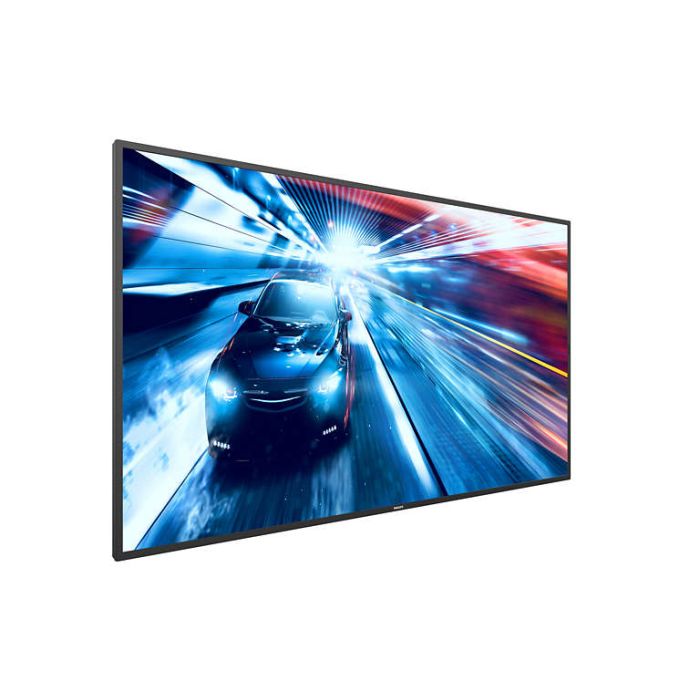

Q-Line Display 43" Direct LED Backlight, Full HD

Description

43" Direct LED Backlight, Full HD

43"
Direct LED Backlight
Full HD

More Information

Brand	Philips
Specifications	Diagonal screen size (metric) 108 cm Diagonal screen size (inch) 42.5 inch Panel resolution 1920x1080p Optimum resolution 1920 x 1080 @ 60 Hz Brightness 350 cd/m² Contrast ratio (typical) 3000:1 Dynamic contrast ratio 500,000:1 Response time (typical) 6.5 ms Aspect ratio 16:9 Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Pixel pitch 0.49 x 0.49 mm Display colors 16.7 Million DICOM Clinical D-image Panel technology VA Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter 3D MA deinterlacing Dynamic contrast enhancement Motion compens. deinterlacing Progressive scan Supported Display Resolution Computer formats 1920 x 1080, 60Hz 1680 x 1050, 60Hz 1600 x 1200, 60Hz 1440 x 900, 60Hz 1280 x 1024, 60Hz 1280 x 800, 60Hz 1280 x 720, 60Hz 1152 x 870, 75Hz 1024 x 768, 60, 70, 75Hz 800 x 600, 56, 60, 72, 75Hz 720 x 400, 70Hz 640 x 480, 60, 67, 72, 75Hz Video formats 1080p, 60Hz 1080i, 60Hz 1080i, 50Hz 720p, 60Hz 576p, 50Hz 576i, 50Hz 480p, 60Hz 480i, 60Hz Connectivity Video input DVI-I x 1 HDMI (x2) USB VGA (via DVI) Audio input 3.5 mm jack Audio output Audio Left/Right (RCA) External control RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack Convenience Energy saving functions Smart Power Tiled Matrix Up to 15 x 15 Start-up Switch on delay Switch on status Boot on source Start-up window enable / disable Philips logo Keyboard control Lockable Hidden Network controllable RS232 RJ45 Signal Loop Through RS232 IR Loopthrough Placement Landscape Remote control signal Lockable Dimensions Bezel width 11.9 (TLR) / 14.7 (B) mm Set Width 968.2 mm Set Height 559.4 mm Set Depth 60.9 mm Set Width (inch) 38.12 inch Set Height (inch) 22.02 inch Set Depth (inch) 2.39 inch VESA Mount 400mm x 400mm , M6 Product weight 8.8 kg Product weight (lb) 19.4 lb Operating conditions Temperature range (operation) 5 ~ 40 °C Temperature range (storage) -20 ~ 60 °C MTBF 50,000 hour(s) Humidity range (operation)[RH] 20 ~ 80% RH (No condensation) Humidity range (storage) [RH] 5 ~ 95% RH (No condensation) Altitude 0 ~ 3000 m Power Consumption (On mode) 75 W Mains power 100 - 240V~, 50/60Hz Standby power consumption <0.5 W comsumption(Max) 110 W Consumption (Typical) 75 W Power Saving Features Smart Power Sound Built-in speakers 2 x 10W RMS Multimedia Applications USB Playback Video H.264 JPEG MPEG USB Playback Picture BMP JPEG PNG USB Playback Audio AAC WMA HEAAC MPEG Accessories Included accessories AC Power Cord RS232 cable Remote Control Batteries for remote control Quick start guide Included Accessories IR sensor cable (1.8 m) RS232 daisy-chain cable USB Cover and screw x1 Stand BM02542/BM05922 Miscellaneous Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (metric)

108 cm

Diagonal screen size (inch)

42.5 inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350 cd/m²

Contrast ratio (typical)

3000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

6.5 ms

Aspect ratio

16:9

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Pixel pitch

0.49 x 0.49 mm

Display colors

16.7 Million

DICOM

Clinical D-image

Panel technology

VA

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Motion compens. deinterlacing
- Progressive scan
Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1680 x 1050, 60Hz
- 1600 x 1200, 60Hz
- 1440 x 900, 60Hz
- 1280 x 1024, 60Hz
- 1280 x 800, 60Hz
- 1280 x 720, 60Hz
- 1152 x 870, 75Hz
- 1024 x 768, 60, 70, 75Hz
- 800 x 600, 56, 60, 72, 75Hz
- 720 x 400, 70Hz
- 640 x 480, 60, 67, 72, 75Hz
Video formats
- 1080p, 60Hz
- 1080i, 60Hz
- 1080i, 50Hz
- 720p, 60Hz
- 576p, 50Hz
- 576i, 50Hz
- 480p, 60Hz
- 480i, 60Hz
Connectivity
Video input
- DVI-I x 1
- HDMI (x2)
- USB
- VGA (via DVI)
Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Convenience
Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up
- Switch on delay
- Switch on status
- Boot on source
Start-up window

enable / disable Philips logo

Keyboard control
- Lockable
- Hidden
Network controllable
- RS232
- RJ45
Signal Loop Through
- RS232
- IR Loopthrough
Placement

Landscape

Remote control signal

Lockable
Dimensions

Bezel width

11.9 (TLR) / 14.7 (B) mm

Set Width

968.2 mm

Set Height

559.4 mm

Set Depth

60.9 mm

Set Width (inch)

38.12 inch

Set Height (inch)

22.02 inch

Set Depth (inch)

2.39 inch

VESA Mount

400mm x 400mm , M6

Product weight

8.8 kg

Product weight (lb)

19.4 lb
Operating conditions

Temperature range (operation)

5 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

MTBF

50,000 hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Altitude

0 ~ 3000 m
Power

Consumption (On mode)

75 W

Mains power

100 - 240V~, 50/60Hz

Standby power consumption

<0.5 W

comsumption(Max)

110 W

Consumption (Typical)

75 W

Power Saving Features

Smart Power
Sound

Built-in speakers

2 x 10W RMS
Multimedia Applications
USB Playback Video
- H.264
- JPEG
- MPEG
USB Playback Picture
- BMP
- JPEG
- PNG
USB Playback Audio
- AAC
- WMA
- HEAAC
- MPEG
Accessories
Included accessories
- AC Power Cord
- RS232 cable
- Remote Control
- Batteries for remote control
- Quick start guide
Included Accessories
- IR sensor cable (1.8 m)
- RS232 daisy-chain cable
- USB Cover and screw x1
Stand

BM02542/BM05922
Miscellaneous

Warranty

3 year warranty
