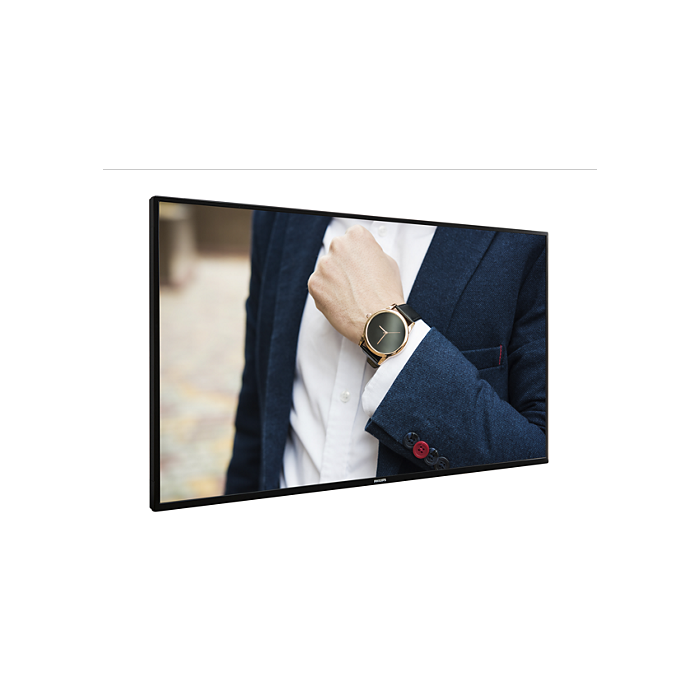

Shop 32BDL4051D 32" Android Display at Tekdis LLC

End of Life

SKU: 32BDL4051D

Signage Size: 32"

D-Line Display 32" Powered by Android, 400cd/m2

Description

32" Powered by Android, 400cd/m2

32"
Powered by Android
400cd/m2

More Information

Brand	Philips
Specifications	Diagonal screen size (inch) 31.5 inch Diagonal screen size (metric) 80 cm Panel resolution 1920x1080p Optimum resolution 1920 x 1080 @ 60Hz Brightness 400 cd/m² Contrast ratio (typical) 1100:1 Dynamic contrast ratio 500,000:1 Aspect ratio 16:9 Response time (typical) 10 ms Pixel pitch 0.36375 (H) x 0.36375 Display colors 16.7 million Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Picture enhancement 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing 3D MA deinterlacing Progressive scan Panel technology IPS Placement Landscape Portrait Operating system Android 7.1.2 Connectivity Video input Display Port1.2x1 DVI-I x 1 HDMI (x2) Video output DisplayPort1.2x1 DVI-I x1 Audio input 3.5 mm jack Audio output 3.5mm jack External control RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack Other connections micro USB USB 3.0 USB 2.0 micro SD mPCIe Supported Display Resolution Computer formats 1920 x 1200, 60Hz 1920 x 1080, 60Hz 1680 x 1050, 60Hz 1600 x 1200, 60Hz 1600 x 900, 60Hz 1440 x 900, 60, 75Hz 1400 x 1050 ,60, 75Hz 1440 x 1050, 60Hz 1360 x 768, 60Hz 1366 x 768, 60Hz 1280x1024, 60,67,75Hz 1152 x 864, 60, 70, 75Hz 1152 x 900, 66Hz 1280 x 720, 60,70Hz 1280 x 768, 60Hz, 75Hz 1280 x 800, 60,75Hz 1280 x 960, 60Hz 1024x768, 60,70Hz 960x720, 75Hz 848 x 480, 60Hz 832 x 624, 75Hz 800 x 600, 56, 60, 72, 75Hz 720 x 400, 70Hz 640 x 480, 60, 67, 72, 75Hz 640 x 350, 70Hz Video formats 1080p, 50, 60Hz 1080i, 50, 60Hz 720p, 50, 60Hz 576i, 50Hz 576p, 50Hz 480p, 60Hz 480i, 60Hz Dimensions Set Width 724.8 mm Set Height 424.3 mm Set Depth 64.1 mm Set Width (inch) 28.54 inch Set Height (inch) 16.7 inch Set Depth (inch) 2.52 inch Bezel width 10.8 mm (T/L/R), 15.7 mm (B) Product weight (lb) 13.56 lb Product weight 6.15 kg VESA Mount 200 x 200 mm, M6 Convenience Tiled Matrix Up to 15 x 15 Keyboard control Hidden Lockable Signal Loop Through IR Loopthrough DisplayPort DVI RS232 Network controllable RJ45 RS232 Screen saving functions Pixel Shift Picture in picture PIP Power Standby power consumption <0.5 W Mains power AC (100 ~ 240 V) , 2.5A Consumption (Typical) 60 W Consumption (On mode) 110W (max) Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Altitude 0 ~ 3000 m MTBF 50,000 hour(s) Humidity range (operation)[RH] 20 ~ 80% RH (No condensation) Humidity range (storage) [RH] 5 ~ 95% RH (No condensation) Sound Built-in speakers 2 x 10W RMS Accessories Included accessories Remote Control Batteries for remote control Quick start guide RS232 cable AC Power Cord Stand Universal Stand-S (BM05911)(Optional) Included Accessories Edge Alignment Kit (1 )-2pcs Edge Alignment Kit (2)-1pcs M2 Screw x2 M3 screw x 1 Philips logo RS232 daisy-chain cable SD card cover x 1 Thumb Screw x8 Multimedia Applications USB Playback Audio AAC M4A MP3 WMA USB Playback Picture BMP JPEG JPG PNG USB Playback Video MKV MP4 MPEG MPG TS VOB WMV ASF AVI DAT FLV Miscellaneous On-Screen Display Languages English French German Spanish Polish Turkish Russian Italian Simplified Chinese Traditional Chinese Arabic Japanese Danish Dutch Finnish Norwegian Portuguese Swedish Regulatory approvals CE BSMI CB EAC EnergyStar 7.0 FCC, Class A PSB UL/cUL CECP EPA Warranty 3 year warranty

Brand

Philips

Specifications

Diagonal screen size (inch)

31.5 inch

Diagonal screen size (metric)

80 cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60Hz

Brightness

400 cd/m²

Contrast ratio (typical)

1100:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

10 ms

Pixel pitch

0.36375 (H) x 0.36375

Display colors

16.7 million

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Progressive scan
Panel technology

IPS

Placement
- Landscape
- Portrait
Operating system

Android 7.1.2
Connectivity
Video input
- Display Port1.2x1
- DVI-I x 1
- HDMI (x2)
Video output
- DisplayPort1.2x1
- DVI-I x1
Audio input

3.5 mm jack

Audio output

3.5mm jack

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Other connections
- micro USB
- USB 3.0
- USB 2.0
- micro SD
- mPCIe
Supported Display Resolution
Computer formats
- 1920 x 1200, 60Hz
- 1920 x 1080, 60Hz
- 1680 x 1050, 60Hz
- 1600 x 1200, 60Hz
- 1600 x 900, 60Hz
- 1440 x 900, 60, 75Hz
- 1400 x 1050 ,60, 75Hz
- 1440 x 1050, 60Hz
- 1360 x 768, 60Hz
- 1366 x 768, 60Hz
- 1280x1024, 60,67,75Hz
- 1152 x 864, 60, 70, 75Hz
- 1152 x 900, 66Hz
- 1280 x 720, 60,70Hz
- 1280 x 768, 60Hz, 75Hz
- 1280 x 800, 60,75Hz
- 1280 x 960, 60Hz
- 1024x768, 60,70Hz
- 960x720, 75Hz
- 848 x 480, 60Hz
- 832 x 624, 75Hz
- 800 x 600, 56, 60, 72, 75Hz
- 720 x 400, 70Hz
- 640 x 480, 60, 67, 72, 75Hz
- 640 x 350, 70Hz
Video formats
- 1080p, 50, 60Hz
- 1080i, 50, 60Hz
- 720p, 50, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 480p, 60Hz
- 480i, 60Hz
Dimensions

Set Width

724.8 mm

Set Height

424.3 mm

Set Depth

64.1 mm

Set Width (inch)

28.54 inch

Set Height (inch)

16.7 inch

Set Depth (inch)

2.52 inch

Bezel width

10.8 mm (T/L/R), 15.7 mm (B)

Product weight (lb)

13.56 lb

Product weight

6.15 kg

VESA Mount

200 x 200 mm, M6
Convenience
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal Loop Through
- IR Loopthrough
- DisplayPort
- DVI
- RS232
Network controllable
- RJ45
- RS232
Screen saving functions

Pixel Shift

Picture in picture

PIP
Power

Standby power consumption

<0.5 W

Mains power

AC (100 ~ 240 V) , 2.5A

Consumption (Typical)

60 W

Consumption (On mode)

110W (max)
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- RS232 cable
- AC Power Cord
Stand

Universal Stand-S (BM05911)(Optional)

Included Accessories
- Edge Alignment Kit (1 )-2pcs
- Edge Alignment Kit (2)-1pcs
- M2 Screw x2
- M3 screw x 1
- Philips logo
- RS232 daisy-chain cable
- SD card cover x 1
- Thumb Screw x8
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- MP3
- WMA
USB Playback Picture
- BMP
- JPEG
- JPG
- PNG
USB Playback Video
- MKV
- MP4
- MPEG
- MPG
- TS
- VOB
- WMV
- ASF
- AVI
- DAT
- FLV
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- BSMI
- CB
- EAC
- EnergyStar 7.0
- FCC, Class A
- PSB
- UL/cUL
- CECP
- EPA
Warranty

3 year warranty
