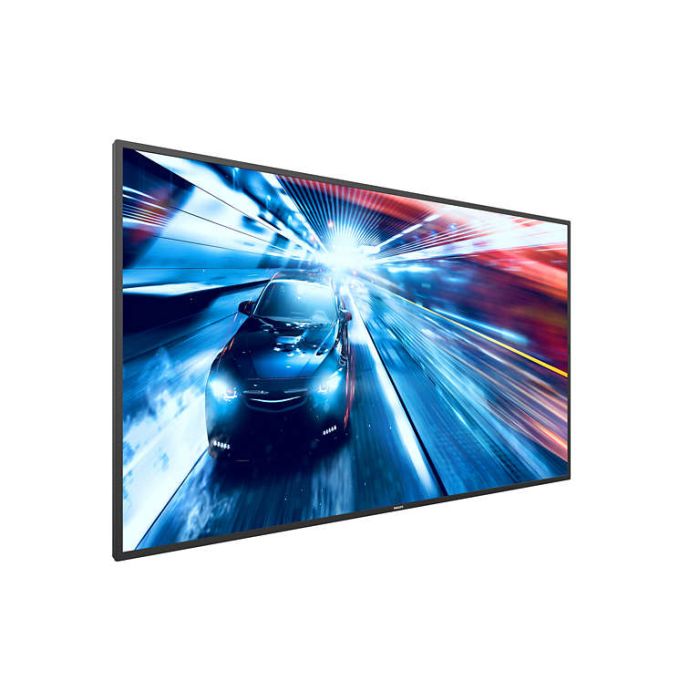

32BDL3010Q 32" Full HD 16/7 Display

Connectivity

Video input

• DVI-I x 1
• HDMI (x2)
• USB
• VGA (via DVI)

Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Convenience

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Switch on delay
• Switch on status
• Boot on source

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45

Signal Loop Through

• RS232
• IR Loopthrough

Placement

Landscape

Remote control signal

Lockable

Dimensions

Bezel width

11.9 (TLR) / 17.2 (B) mm

Set Width

726.5  mm

Set Height

425.4  mm

Set Depth

63.6  mm

Set Width (inch)

28.6  inch

Set Height (inch)

16.75  inch

Set Depth (inch)

2.5  inch

VESA Mount

100mm x100mm, 200mm x 200mm ,M4

Product weight

5.20  kg

Product weight (lb)

14.74  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Power

Consumption (On mode)

50 W

Mains power

100 - 240V~, 50-60Hz, 1.5A

Standby power consumption

<0.5 W

comsumption(Max)

75 W

Consumption (Typical)

50  W

Power Saving Features

Smart Power

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• MPEG
• H.264
• JPEG

USB Playback Picture

• BMP
• JPEG
• PNG

USB Playback Audio

• AAC
• WMA
• HEAAC
• MPEG

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• Quick start guide

Included Accessories

• IR sensor cable (1.8 m)
• RS232 daisy-chain cable
• USB Cover and screw x1

Stand

BM02541/BM05911

Miscellaneous

Warranty

3 year warranty
