SKU: GEOA215AU-OD04-BT

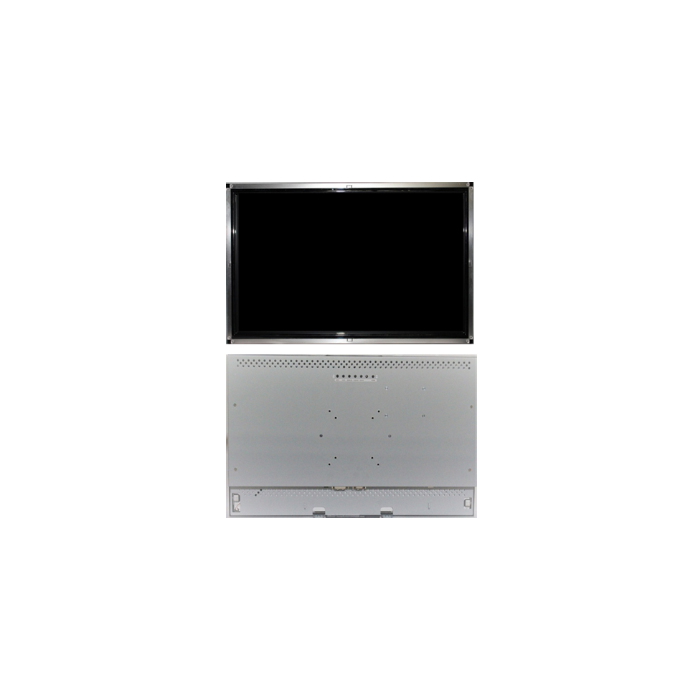

21.5" open frame display, 300 cd/m2 brightness

Description

Designed for demanding environments, the Estecom 21.5” Touch Open Frame
series delivers a long life cycle and high performance of touch experience to a wide
range of commercial and industrial applications.
The Estecom Touch Open Frame family series will lead you to dynamic digital world
with instrument “drop-in” designs.

More Information

Specifications	Estecom Controller Board : ORCHID-D 1920 x 1080 16:9 Aspect Ratio 5000 : 1 Contrast Ratio 300cd/㎡ (typ.) Brightness 89/89/89/89 (L/R/U/D) Luminance Uniformity : 80% (typ.) Durable Touch Screen : Shadow Sensored - Option : P-CAP / IR / SAW / 4 & 5 wire Resistive - Window 8 Plug & Play Touch Controller, USB Robust CNC milled enclosure by ventilation structure Other value-added options Compliant with safety regulations Resolution support : up to WUXGA @ 60Hz/1080i Input : VGA, DVI, RS232 Audio In/Out, Speaker Out VESA DPMS Power saving mode 6 buttons OSD Board (SGML0000600) Menu / Down (Auto Config.) / Decrease / Increase / Source/Exit Customization available by request

Specifications

Estecom Controller Board : ORCHID-D
1920 x 1080
16:9 Aspect Ratio
5000 : 1 Contrast Ratio
300cd/㎡ (typ.) Brightness
89/89/89/89 (L/R/U/D)
Luminance Uniformity : 80% (typ.)
Durable Touch Screen : Shadow Sensored
- Option : P-CAP / IR / SAW / 4 & 5 wire Resistive
- Window 8 Plug & Play Touch Controller, USB
Robust CNC milled enclosure by ventilation structure
Other value-added options
Compliant with safety regulations
Resolution support : up to WUXGA @ 60Hz/1080i
Input : VGA, DVI, RS232
Audio In/Out, Speaker Out
VESA DPMS Power saving mode
6 buttons OSD Board (SGML0000600)
Menu / Down (Auto Config.) / Decrease / Increase / Source/Exit
Customization available by request
