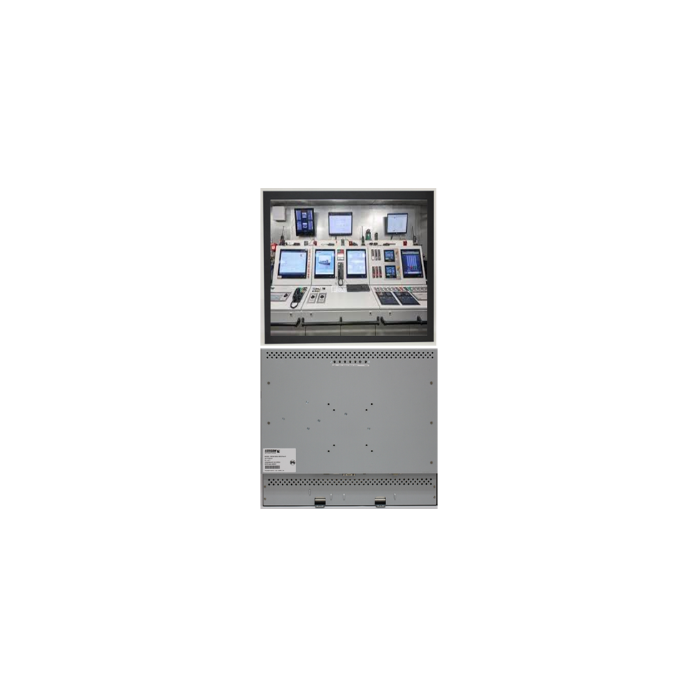

19" open frame display

SKU: GEOA190AU-MI02-IT

19" open frame display, 350 cd/m2 brightness

Datasheet

Description

Designed for demanding environments, the Estecom 19.0” Open Frame series
delivers a long life cycle and high performance of touch experience to a wide range
of commercial and industrial applications.
The Estecom Open Frame family series will lead you to dynamic digital world with
instrument “drop-in” designs

Download

Datasheet

More Information

Specifications
  • Estecom Controller Board : MARIGOLD-I
  • 1280 x 1024 (16.7M / RGB 6-bits + HiFRC data)
  • 5:4 Aspect Ratio
  • 1000 : 1 Contrast Ratio
  • 350cd/㎡ (typ.) Brightness
  • 85/85/80/80 (L/R/U/D)
  • Durable Touch Screen : P-CAP
    - Option : IR / SAW / 4 & 5 wire Resistive / Shadow Sensor
    - Window 8 Plug & Play Touch Controller, USB
  • Robust CNC milled enclosure by ventilation structure
  • Other value-added options
  • Compliant with safety regulations
  • Resolution support : up to WUXGA @ 60Hz/1080i
  • Input : VGA, HDMI, DP
  • PIP with High Picture Quality
  • VESA DDC 1/2B compliant
  • 7 buttons OSD Board (SGML0000700)
    Menu / Down / UP / Decrease(Left) / Increase(Right) / Source/Power
  • Customization available by request
