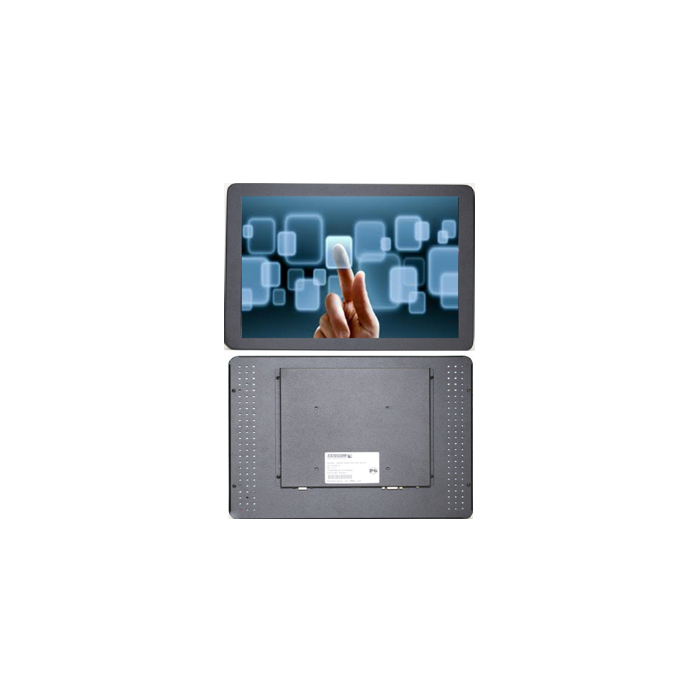

15" open frame display

SKU: GEOA150AU-MI01-BT

15.0" open frame display, 250 cd/m2 brightness

Datasheet

Description

Designed for demanding environments, the Estecom 15.0” Enclosed Open Frame
Monitor series delivers a long life cycle and high performance of touch experience
to a wide range of commercial and industrial applications.
The Estecom Open Frame family series will lead you to dynamic digital world with
instrument “drop-in” designs

Download

Datasheet

More Information

Specifications
  • Estecom Controller Board : MARIGOLD-I
  • 1024 x 768 (16.2M / RGB 8-bits)
  • 4:3 Aspect Ratio
  • 700 : 1 Contrast Ratio
  • 250cd/㎡ (typ.) Brightness
  • 85/85/80/80 (L/R/U/D)
  • Durable Touch Screen : Shadow Sensor
    - Option : IR / SAW / 4 & 5 wire Resistive / P-CAP
    - Window 8 Plug & Play Touch Controller, USB(Cable included)
  • Robust CNC milled enclosure by ventilation structure
  • Other value-added options
  • Compliant with safety regulations
  • Resolution support : up to WUXGA @ 60Hz/1080i
  • Input : VGA, HDMI, DP
  • PIP with High Picture Quality
  • VESA DDC 1/2B compliant
  • 7 buttons OSD Board (SGML0000700)
    Menu / Down / UP / Decrease(Left) / Increase(Right) / Source/Power
  • Customization available by request
