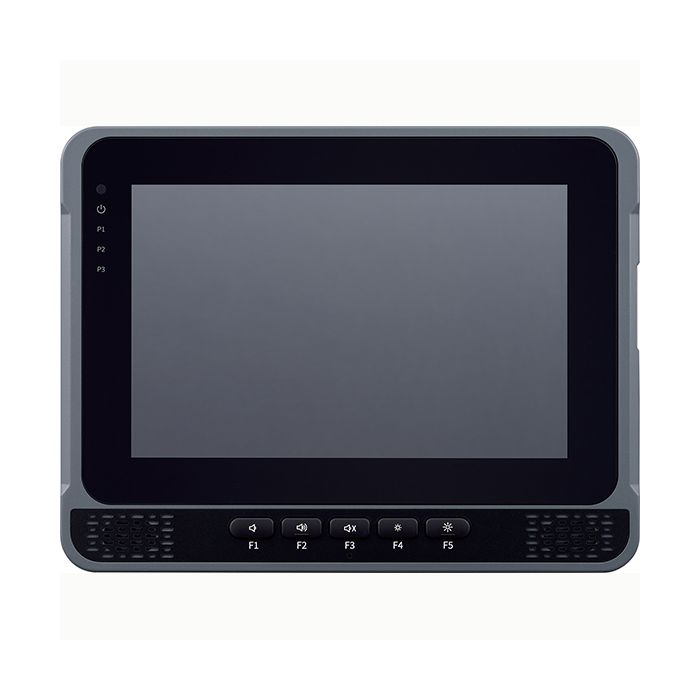

The VMC 320 is a 10.1-inch all-in-one vehicle mount computer specifically designed for use in warehouses, ports, logistics, and material handling markets. It runs on Android and Linux platforms and is powered by the NXP i.MX 8M Plus low-power processor. The device offers an IP65 and IK08 front panel, making it robust and durable. The LCD panel has a brightness of 1,000nits, ensuring it is easy to read even in sunlight. Additionally, the device can be set up in various facilities and vehicles due to its wide-range power input of 9V~60V. It also features two M.2 slots designed for WLAN and WWAN wireless connectivity.
1 x M.2 3042/3050/3052 Key B socket (USB 3.2 Gen1) for LTE/5G NR module with 1 x external dual Nano-SIM slot
GNSS and Onboard Sensor
1 x Default u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
Optional M9V modules with dead reckoning available
G Sensor and gyroscope
LAN
1-port LAN, 10/100/1000 Mbps, M12 X-coded
Security
TPM 2.0: Infineon SLB9670VQ2.0
I/O Interface-Front
F1 ~ F5 programmable function keys (or volume control keys (+/-), brightness control keys (+/-), volume mute)
1 x Light sensor
4 x LED indicators (1 x power, 3 x programmable)
2 x Built-in 2W speakers
1 x Mic
I/O Interface-Lateral
Right Side - 1 x Power button - 1 x USB 2.0 type A connector w/ cover - 1 x System reset button w/ cover - 1 x MicroSD slot w/ cover - 1 x Dual Nano-SIM slot w/ cover
I/O Interface-Rear
2 x DB9 (COM1/2) for full RS232/422/485
1 x Power connector, M12 A-coded 5-pin
1 x 10/100/1000 Mbps LAN, M12 X-coded 8-pin
1 x USB 3.2 Gen1 type A
1 x USB 2.0 type A
1 x HDMI output
1 x DB9 female (audio) for Mic-in (mono), 1 x Line-out (stereo)
1 x DB15 (multi port) - 2 x GPI - 2 x GPO - 1 x Isolated CAN FD, compatible with CAN2.0A/2.0B - PWM (speed)+Direction+GND
4 x SMA connector hole for WWAN
2 x RP-SMA connector hole for WLAN
1 x RP-SMA connector hole for Bluetooth
1 x SMA connector for GNSS
Mechanical
Cooling system: fanless
Enclosure: metal
IK rating: IK08 (housing and touch screen)
Mounting: VESA 75/100
Ingress protection: front panel IP65
Dimension: 294.0mm (W) x 227.5mm (H) x 37.2mm (D)
Weight: 3.6kg
Power Management
9V ~ 60V DC in
Reverse protection/over-voltage protection/under voltage protection
Ignition on/off control & programmable on/off delay timing
Wake up by SMS, RTC, LAN and ignition
Environment
Operating temperatures: Ambient with air -30°C to 70°C, ambient with air
