AV600-RH Military IP66 AI Edge GPU Computer
Military IP66 with D38999 connectors VIDIA RTX A1000/A2000, 2048/2560 CUDA
Key Features:
- MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
- IP66 Chassis with D38999 connectors
- Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
- Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
- NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
- MIL-STD-461 EMI Filter18V~36V DC-Input
- Extreme Temperature : -40°C to 60°C
- Dimensions : 250(L) x 325 (W) x 100 (H) mm
AV600RH is driven by Intel® 13 Gen. Raptor Lake Processors. These processors are Intel’s industrial-grade processors. Raptor Lake provides an incremental set of crucial industrial features vital to the manufacturing and energy sector, along with a significant increase in instructions-per-cycle performance from the 12th Gen Core Mobile Processor. Moreover, Raptor Lake also comes with long-life hardware availability of up to 10 years and software support of up to 5 years.
AV600RH highlights its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connectors and full IP66 protection allow the system to withstand any kind of harsh environment. AV600RH supports extended temperature from -40°C to 55°C and MIL-STD-461 18V~36V DC-input Power supply which can protect the system from damages caused by sudden surges of voltage, thus further securing the reliability of its critical components and the system itself.
Key Features:
- MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
- IP66 Chassis with D38999 connectors
- Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
- Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
- NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
- MIL-STD-461 EMI Filter18V~36V DC-Input
- Extreme Temperature : -40°C to 60°C
- Dimensions : 250(L) x 325 (W) x 100 (H) mm
By Request:
- Frame Grabber: 4xCH HD-SDI
- Discrete IO : 4xDI 4xDO
- 10GbE : Dual 10GbE (Intel X710) Ethernet Ports
- Dual Redundant MIL-STD-1553 connections
- Dual ARINC 429 input connections
- Conformal coating on electronics
|
System |
||||
|---|---|---|---|---|
|
CPU |
13th Raptor Lake (H) i7-13800HE/HRE, 14xCores, 2.5(5.0) Ghz |
|||
|
Memory type |
Dual channel DDR5 memory up to 64GB, 4800MT/s |
|||
|
CHIPSET |
|
|||
|
GPU |
NVIDIA RTX™ A1000 /A2000 embedded graphics - Standard MXM 3.1 Type A, B - 2048 CUDA® 4GB RAM-A1000 - 2560 CUDA 8GB RAM -A2000
|
|||
| On board Storage | NVMe Soldered 64GB SSD | |||
|
Expansion Slot |
1 x M.2(M-key,Type: 2280 , PCIe 3.0 x 1 ) 2 x Mini PCIe Full size (USB / PCIe and 1 x micro SIM Card) 1 x PCIe/104(TypeII), 1 x FPE |
|||
| TPM | TPM 2.0 (SLB9665) | |||
|
VIDEO INPUT |
4 Channel Capture module for 4 x SMA male connectors (Optional) | |||
|
Storage |
||||
| SATA | 2 x 2.5” SSD | |||
|
|
|
|||
|
Ethernet |
||||
|
Ethernet (Internal) |
2 x 10/100/1000 Ethernet Ports |
|||
|

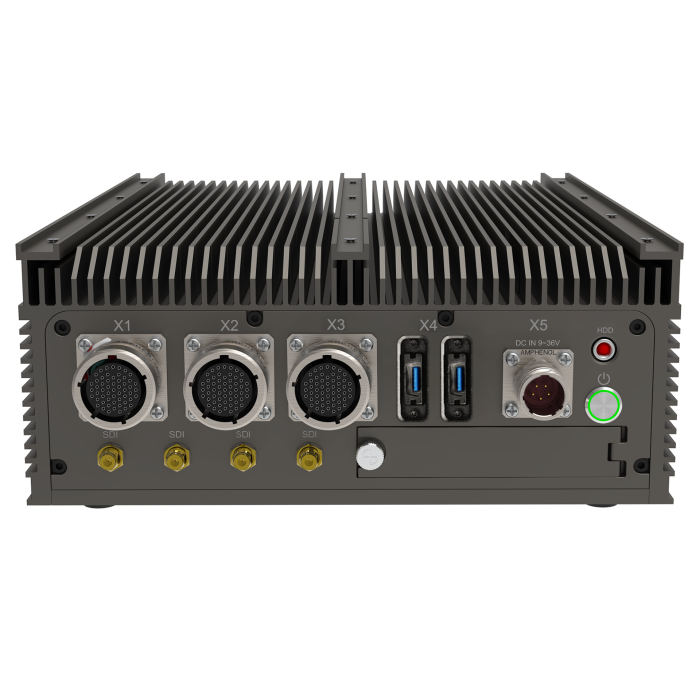

Front I/O |
||||
| X1 | 1 x DVI , with D38999 connector | |||
| X2 | 1 x DVI , with D38999 connector | |||
| X3 | 2 x GLAN + 3 x USB 2.0, with D38999 connector | |||
| X4 | 2x USB 3.0 | |||
| DC-in | 1 x DC-in , with D38999 connector | |||
| LED | 1 x SSD/HDD LED indicator | |||
| switch | 1 x IP65 power button, with LED indicator | |||
|
Power |
||||
|
Power input |
MIL-STD -461 18V~36V DC-Input |
|||
|
Operating System |
||||
|
OS |
Windows® 11-Pro / Linux (support by request) |
|||
|
Physical |
||||
|
Dimension |
250(L) x 325 (W) x 100(H)mm |
|||
|
Weight |
10.5 Kg |
|||
|
Chassis |
Aluminum Alloy |
|||
|
|
|
|||
|
Environmental |
||||
|
Green Product |
RoHS, WEEE compliance |
|||
|
Operating Temp. |
-40 to 60°C |
|||
|
Storage Temp. |
-40 to 85°C |
|||
|
Relative Humidity |
5% to 95%, non-condensing |
|||
|
MIL-STD-810 Specifications (Operating) |
||||
|
Method 502.5 |
Low Temperature |
-20°C, 4 hours, ±3°C |
||
|
Procedure 2 |
||||
|
Method 501.5 |
High Temperature |
+60°C, 4 hours, ±3°C |
||
|
Procedure 2 |
||||
|
Method 507.5 |
Humidity |
85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles. |
||
|
Method 514.6 |
Vibration |
5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
||
|
Method 516.6 |
Shock |
20 Grms, 11ms, 3 axes. |
||
|
MIL-STD-810 Specifications (None-Operating) |
||||
|
Method 502.5 |
Low-Temperature Storage
|
-33°C, 4 hours, change rate:≦20°C/ Hour -15°C, 72hours (By request) |
||
|
Procedure 1 |
||||
|
Method 501.5 |
High-Temperature Storage |
+71°C, 4 hours, change rate:≦20°C/ Hour +63°C, 240 hours (By request) |
||
|
Procedure 1 |
||||
|
Method 514.6 |
Vibration |
5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
||
|
Method 516.6 |
Shock |
20 Grms, 11ms, 3 axes. |
||
| MIL-STD-461 | ||||
| Conducted Emissions | CE102 basic curve | 10kHz – 30MHz | ||
| Power Leads | ||||
| Conducted Emissions | RE102-4 | 1.5HMz - 30MHz – 5GHz | ||
| Electric Field | ||||
| Radiated Susceptibility | RS103 | 1.5 MHz – 3GHz, 50 V/m equal for all frequencies | ||
| 2MHz – 80MHz, 50 V/m equal for all frequencies | ||||
| Electric Field | 80MHz – 3GHz, 50 V/m equal for all frequencies | |||
| 3GHz – 5GHz, 50 V/m equal for all frequencies | ||||
| Electrostatic Discharge | EN 61000-4-2 | Air DISCHARGE: 8 Kv, Contact discharge : 6kV | ||
| Electromagnetic compatibility | EN61000-4-4 | Signal and DC Net: 1 kV | ||
| Electromagnetic compatibility | EN61000-4-5 | Lead vs. ground potential 1Kv, ignal und DC Net: 1 kV | ||
| Radio disturbance | EN55022 | Class A | ||
| Electromagnetic compatibility | EN61000-4-3 | 10V/m | ||
| Electromagnetic compatibility | EN 61000-4-5 | Lead vs. ground potential 1Kv, ignal und DC Net: 0.5 kV | ||
| Designed to Meet Items ( Options ) | ||||
| CS101, CS114, CS115, CS116 | ||||
| CE106, RE103, RS101 | ||||
| MIL-STD-1275 | Steady State | 20V-33V | ||
| Surge Low | 18V/500ms | |||
| Surge High | 100V/500ms | |||
