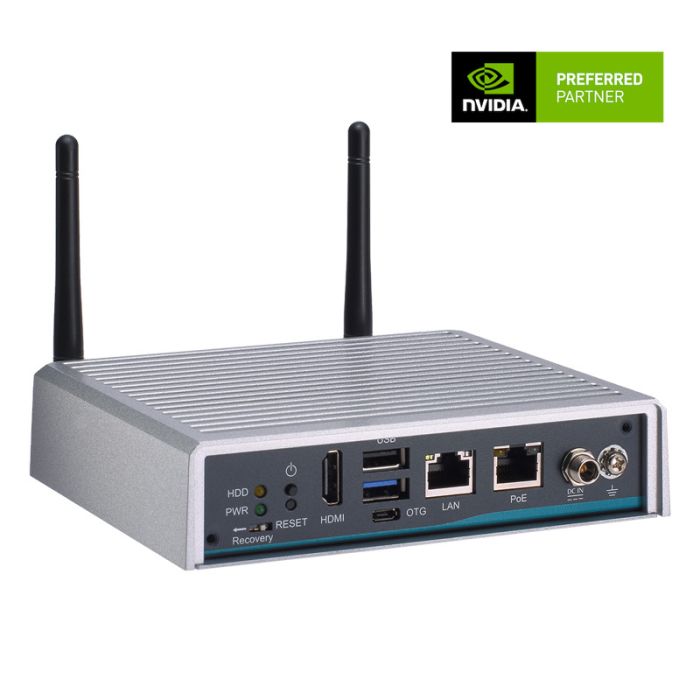

AIE100-ONA Fanless Edge AI System with NVIDIA Jetson Orin Nano SoM
Axiomtek AIE100-ONA Fanless NVIDIA® Jetson Orin™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB, Allxon Remote Management
Key Features:
- NVIDIA® Jetson Orin™ Nano, up to 1024-core NVIDIA Ampere GPU
- High AI computing performance for GPU-accelerated processing
- Ideal for edge AI smart city applications
- Supports one 15W GbE PoE for camera
- Wide operating temperature from -20°C to +50°C
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
The NVIDIA® Jetson Orin™ Nano is a powerful edge computing solution with a high-performance NVIDIA Ampere GPU that features up to 1024 cores. It offers exceptional AI computing capabilities, making it well-suited for GPU-accelerated processing in smart city applications at the edge. The device supports one 15W GbE Power over Ethernet (PoE) port for camera connectivity.
With a wide operating temperature range of -20°C to +50°C, the Jetson Orin™ Nano can function reliably in various environmental conditions. It is compatible with JetPack, a software development kit provided by NVIDIA, enabling seamless development and deployment of AI applications. Additionally, the device supports secure remote monitoring, control, and over-the-air (OTA) deployment, facilitated by Allxon's technology, ensuring continuous and secure operation.
Key Features:
- NVIDIA® Jetson Orin™ Nano, up to 1024-core NVIDIA Ampere GPU
- High AI computing performance for GPU-accelerated processing
- Ideal for edge AI smart city applications
- Supports one 15W GbE PoE for camera
- Wide operating temperature from -20°C to +50°C
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
| Standard Color | Silver |
| Construction | Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit) |
| AI Accelerator | NVIDIA® Jetson OrinTM Nano |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| GPU |
4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores 8GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| System Memory |
4GB: 4GB 64-bit LPDDR5 onboard 8GB: 8GB 128-bit LPDDR5 onboard |
| Carrier Board | SBC87903 |
| System I/O Outlet | 1 x HDMI 1.4 with 4K2K supported |
| 1 x 10/100/1000 Mbps Ethernet (via Jetson OrinTM Nano) | |
| 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W) | |
| 1 x USB 3.2 Gen2, 1 x USB 2.0 | |
| 1 x Micro USB for image flash | |
| 1 x Recovery switch | |
| 1 x Reset button | |
| 1 x Power button | |
| 1 x 12 VDC power input connector | |
| 2 x SMA-type antenna connector | |
| Watchdog Timer | Built-in Orin Nano |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| *The bootable device supported by NVMe only | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) |
| 1 x SIM slot | |
| System Indicator | 1 x Green LED for system power-on |
| 1 x Yellow LED for M.2 storage | |
| Power Supply | 12 VDC screw type |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Humidity | 10% - 95%, non-condensing |
| Vibration Endurance | 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions) |
| Dimensions | 148.6 mm (5.85") (W) x 129.8 mm (5.11") (D) x 34.6 mm (1.36") (H) |
| Weight (net/gross) | 1 kg (2.20 lb)/1.6 kg (3.52 lb) |
| Certifications | CE, FCC Class A |
| OS Support | Linux Ubuntu 20.04 or later |
